TPO UWA Guidescope 180

The guidescope is mounted parallel to the actual tube - ideally using guide scope rings, in which the guidescope can be moved more easily. A camera can then be connected to the camera end, which automatically operates the mount's tracking control. This enables long-exposure night sky images.

Cameras that are useful for guiding have a 1.25" socket, with which they can be connected easily to the guidescope.

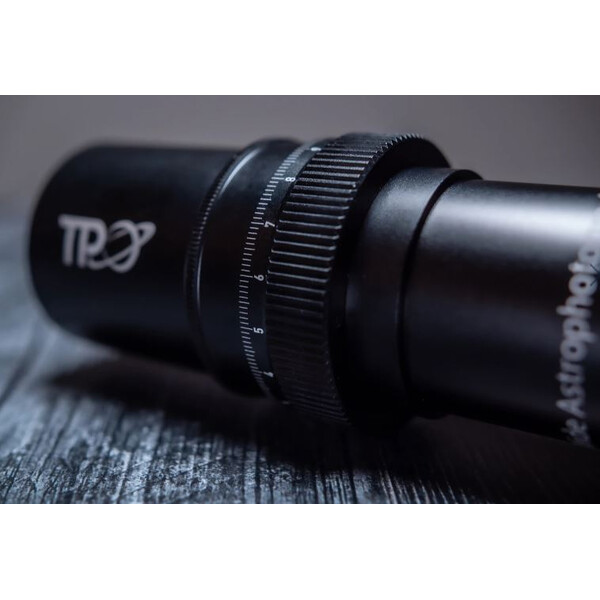

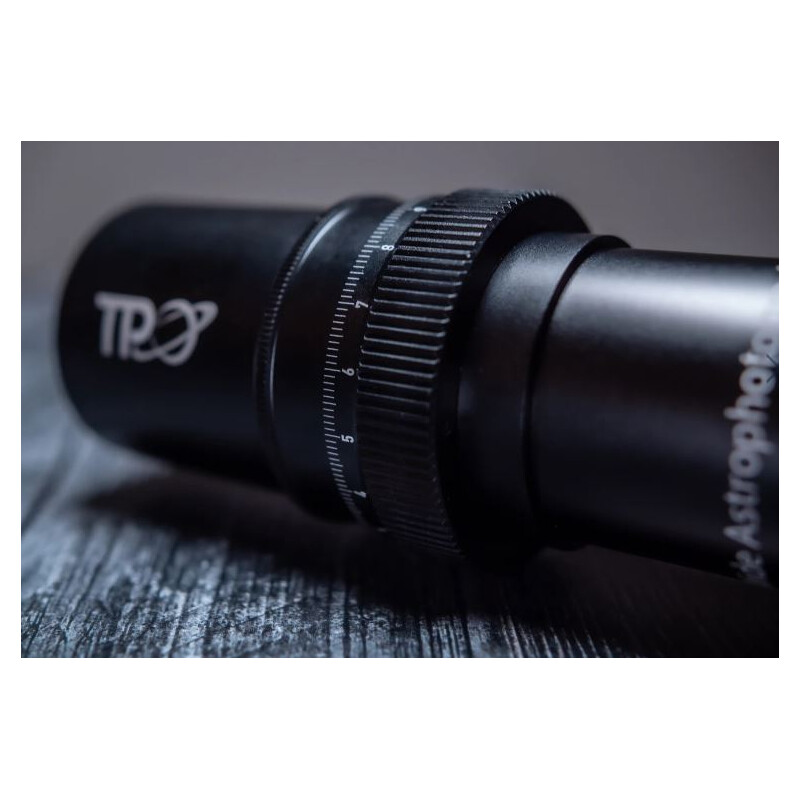

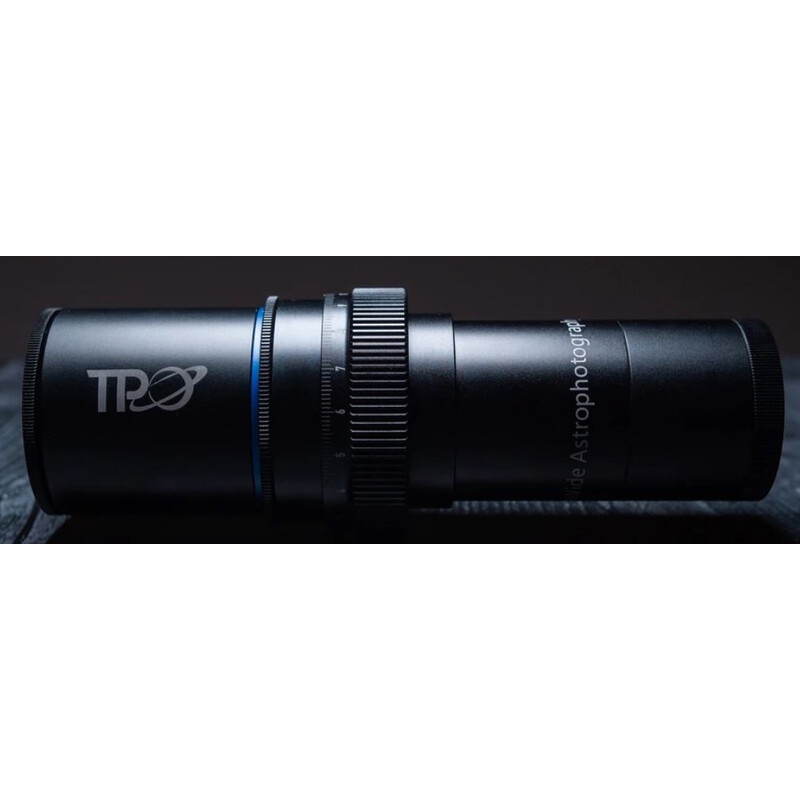

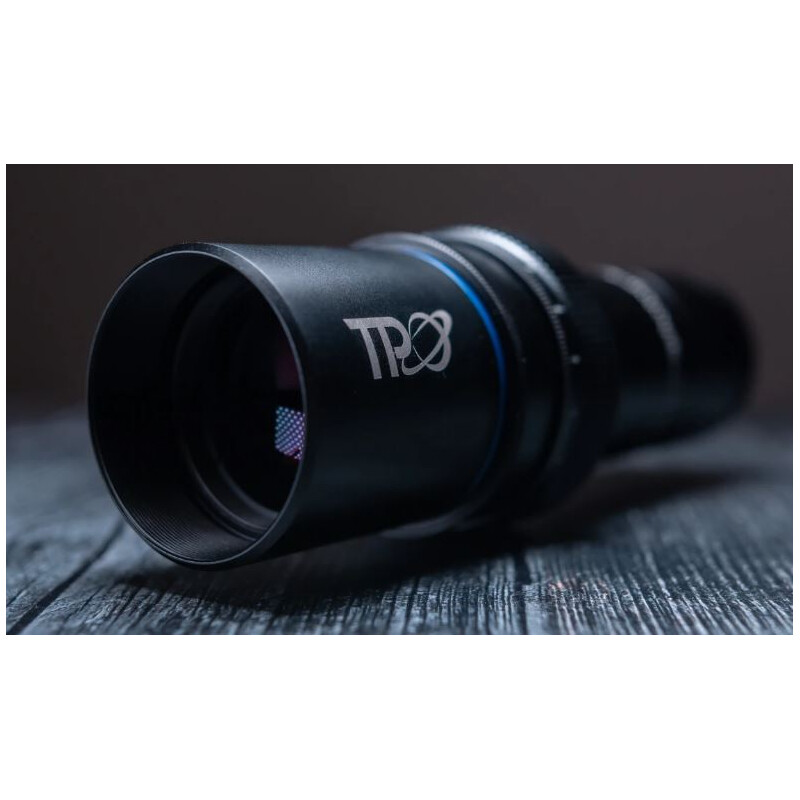

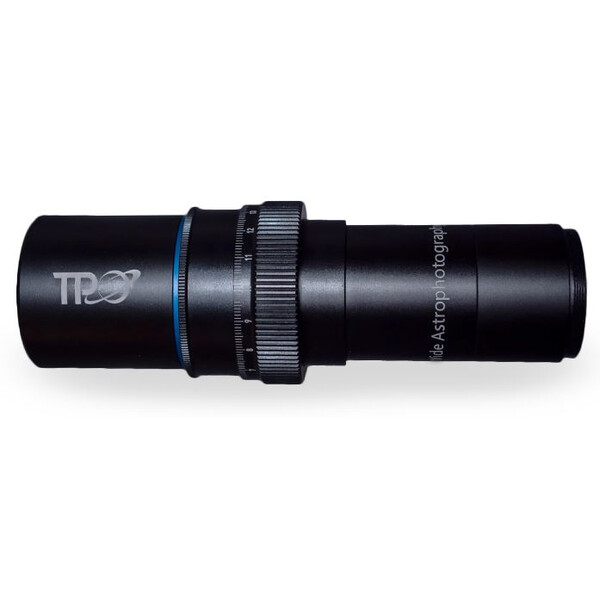

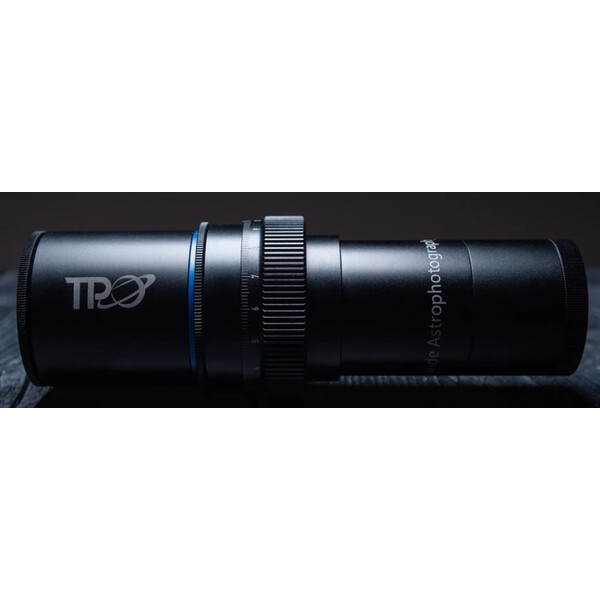

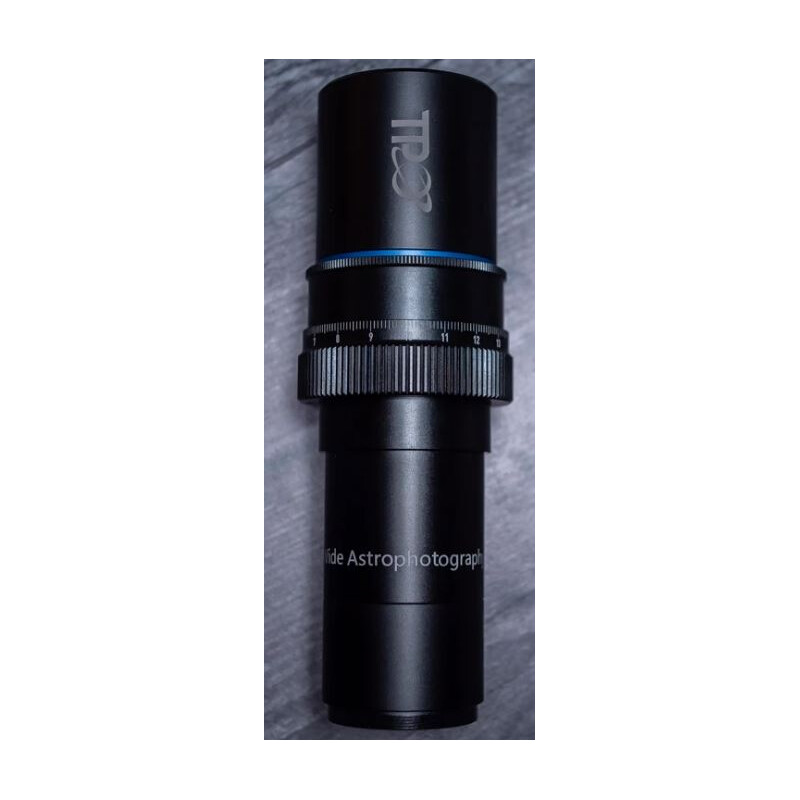

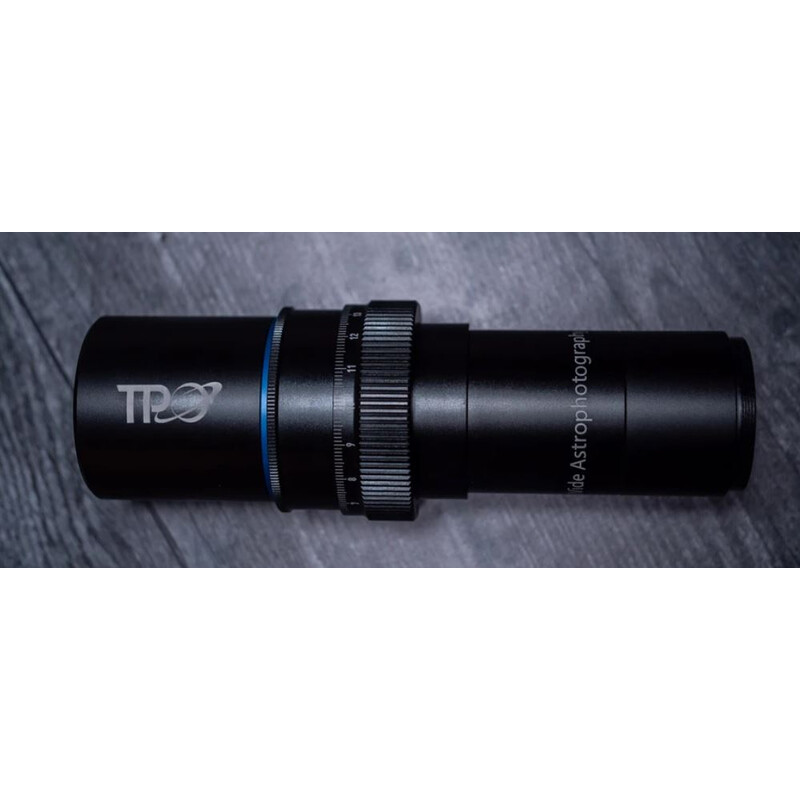

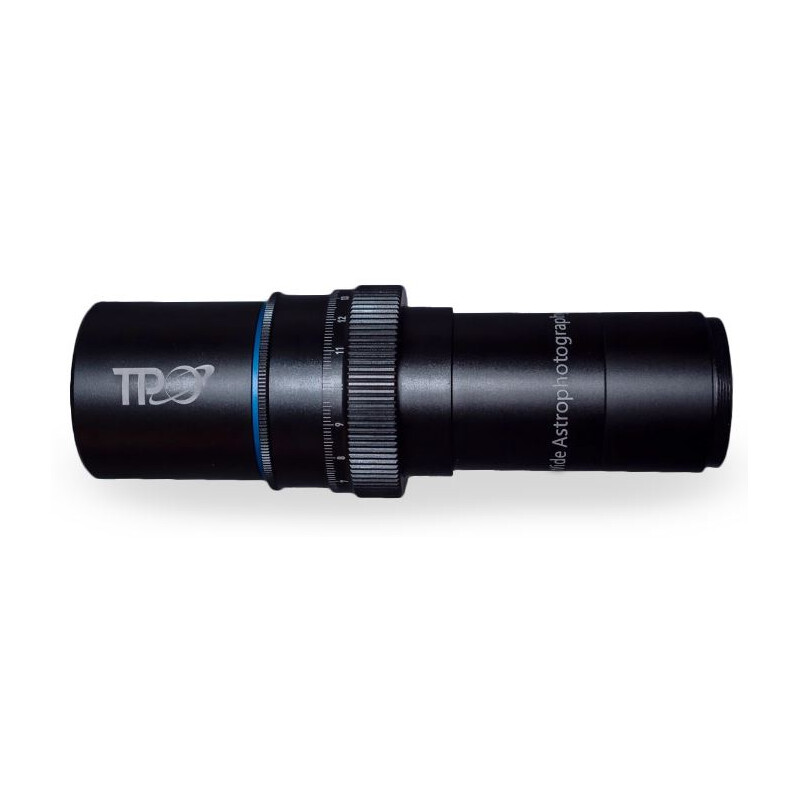

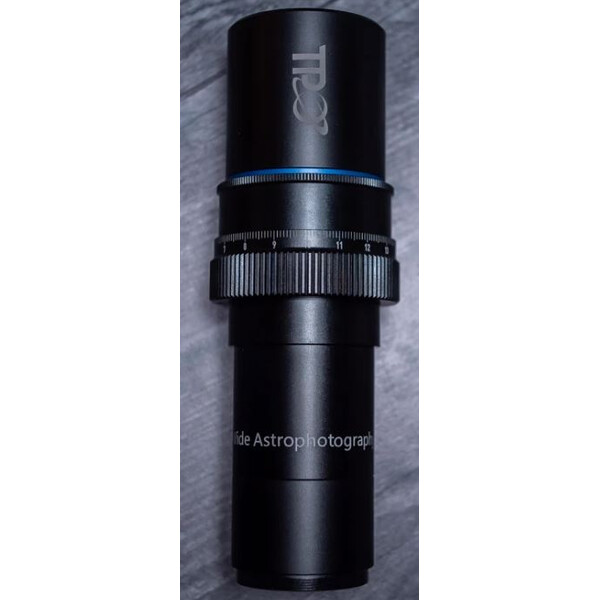

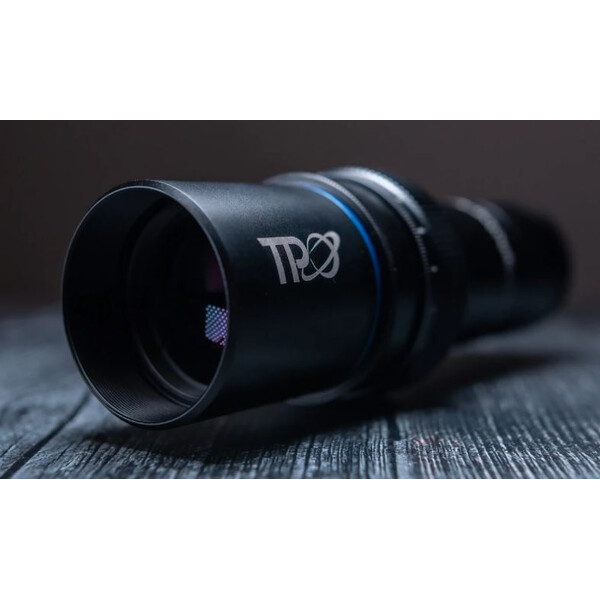

The TPO UltraWide 180 Astrophotography Lens & Guide Scope is the smallest dedicated astrophotography telescope on the market, but don't be fooled by its size — this telescope can produce spectacular images.

Tiny, Yet Mighty

Weighing in at less than a pound, the TPO UltraWide 180 is the ultimate portable astrophotography telescope/lens. With a 180mm focal length and a fast f/4.5 focal ratio, this scope can yield fantastic images that cover vast regions of the night sky. The tube itself weighs just 13.9 oz (395 g), meaning you can truly take it anywhere. With the TPO UltraWide 180, you can forget having to leave your telescope at home. It's the perfect imaging companion for going camping, backpacking, and on road trips. It can even tuck into your luggage bag for your next flight — no more wishing you could bring your telescope with you the next time you visit somewhere with dark skies.

Astrophotography Optical Performer

The TPO UltraWide 180 features an air-spaced triplet APO design with dual ED elements. When paired with the included three-element reducer, the telescope can provide superior correction that leads to pristine images free of chromatic aberration. Its large image circle can cover crop-sensor cameras with ease, and is even compatible with sensors as large as full frame, though there may be a slight drop-off in corner performance with these sensors.

Not Your Average Lens

With an aperture of just 40mm and an overall length of just 145mm, the TPO UltraWide 180 may look like a camera lens at first glance. Make no mistake, though — this small scope can outperform camera lenses designed for cameras in its class with ease. Camera lenses, which are designed for daytime photography, have aperture blades inside that cause diffraction spikes on bright stars, which can be an undesirable effect for astrophotography. The TPO UltraWide 180 is a fixed aperture with no aperture blades, meaning that stars remain round and tight for cleaner images.

Next-Level Versatility

Although the TPO UltraWide 180 was designed to be a deep sky astrophotography telescope, it can be used in a myriad of other ways as well. Also included in the box are two extension tubes, tube rings, a Vixen dovetail plate, an Arca-Swiss camera plate, and a 1.25" eyepiece/accessory adapter. This means you can use the TPO UltraWide 180 as a quality guide scope when paired with a mini guide camera, or even use it visually with 1.25" eyepieces as a main scope or finder scope. The three-element reducer unscrews for visual or autoguiding purposes, which turns the telescope into a 220mm f/5.5 system. The standard Vixen-style shoe will fit into both Vixen saddles and traditional finder shoes. The included Arca-Swiss camera plate allows the telescope to even be fitted directly to a compatible camera tripod.

Generous Back Focus for Astrophotographers

The TPO UltraWide 180 features a standard back focus of 55mm, which allows for seamless attachment of your preferred camera. For DSLR/Mirrorless camera owners, just use the appropriate M42 T-ring for your camera lens mount and you're good to go. The telescope features 42mm rear threads, so be sure to use an M42 size T-ring. For astronomy-dedicated camera owners, the TPO UltraWide 180's generous back focus can accommodate small additions to the imaging train, such as a filter drawer to hold a multi-bandpass or narrowband filter. By removing the extension tube on the back of the reducer, up to 99mm of back focus spacing becomes available. Please note that with this telescope's fast focal ratio of f/4.5, we recommend getting back focus spacing as accurate as possible. See our back focus spacing guide for help.

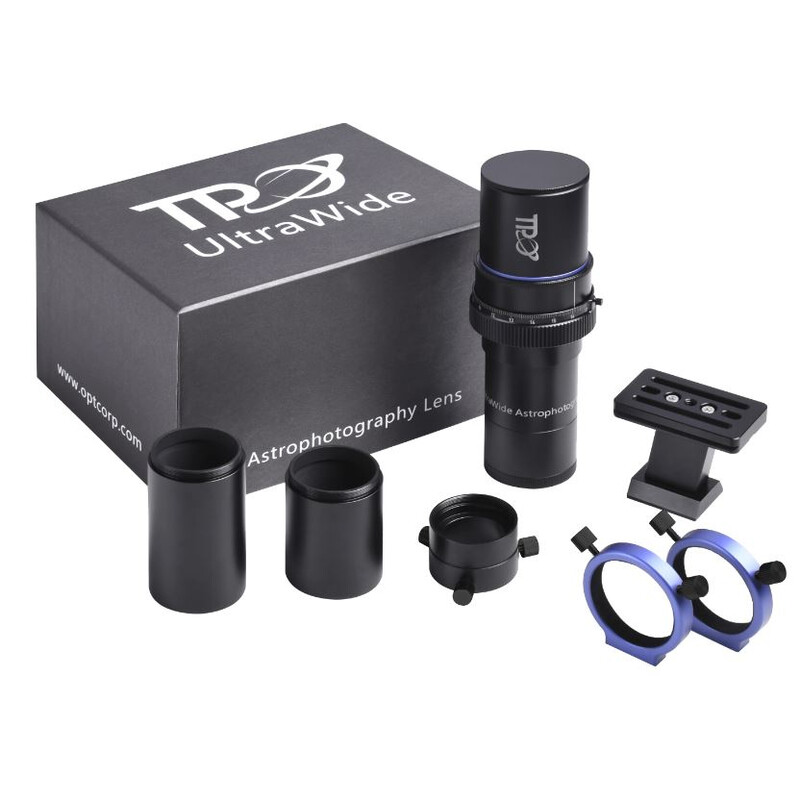

Included Items:

• TPO UltraWide 180 Astrophotography Lens
• Three-Element Reducer with Reducer Extension Tube
• Extension Tube 1
• Extension Tube 2
• 1.25" Adapter
• Tube Rings
• Vixen/Finder Dovetail Plate
• Arca-Swiss Dovetail Plate
• Dovetail Stalk
• Hex Key
