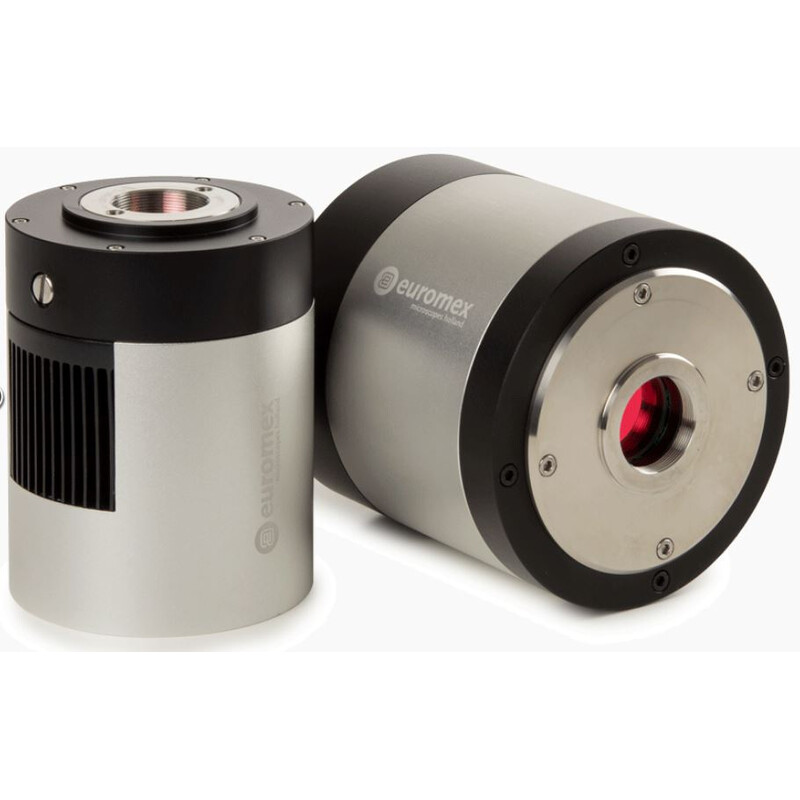

Euromex cooled color cameras
The Euromex 6 and 20 Megapixel Peltier cooled cameras are equipped with Peltier cooling elements that allow the camera to be used for fluorescence and other low light applications. These advanced and premium models are supplied with a USB-3 interface All cameras are supplied with ImageFocus Alpha software. The software has specific functions for fluorescence like combining captured fluorescence images. Besides that it allows capturing of images and videos, do measurements annotations, generate reports, live image stitching etc. Compatible with Windows 7, 8 and 10, both 32 and 64 bits configurations
TECHNICAL SPECIFICATIONS DC.20000i
Sensor 1 inch Peltier cooled CMOS sensor
Pixels 5440 x 3648 pixels, 20 Mpix
Scan mode Progressive, rolling shutter
Pixel size 2.4 μm x 2.4 μm
Filter RGB
Mount C-mount
Max fps
Up to 5 frames per second (5440 x 3648 pixels)
Up to 10 frames per second (4096 x 2160 pixels)
Up to 15 frames per second (2736 x 1824 pixels)
Up to 30 frames per second (1824 x 1216 pixels)
Exposure Automatic or manual, exposure time 0.1 ms ~ 3600 s
White balance Automatic/manual
Sensitivity 462 mV @ 1/30 s
Data interface USB 3.0 high speed (USB-2 compatible)
Peltier cooling system Two-stage active-cooling system -45 °C below camera body temperature
Operation -10~50°C, 30-80 % humidity
Storage temperature -20~60°C
Power supply 5V over PC USB port External power adapter for cooling system, DC 12 V, 3 A
Supplied with USB-3 cable, 1x C-mount objective, 30.0 and 30.5 mm to 23.2 mm conversion adapters for use with stereo microscopes, 1 mm/100 (10 µm/division) calibration slide, ImageFocus Alpha software, external 100-240 Vac power supply and carrying case
Product number DC.20000i
