C-P20CM

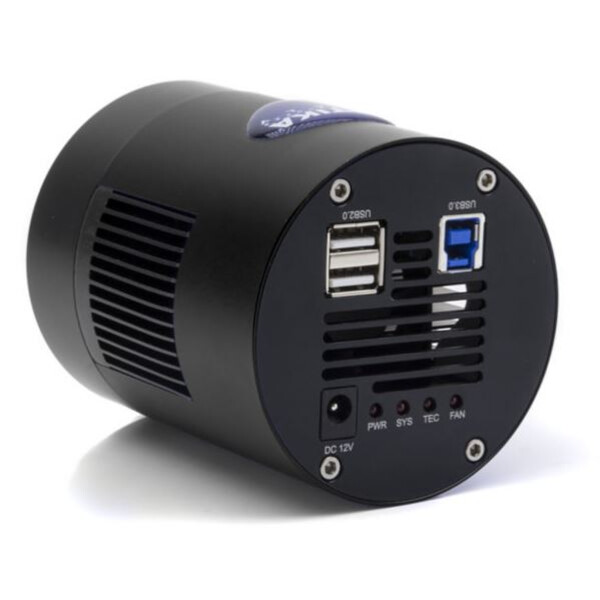

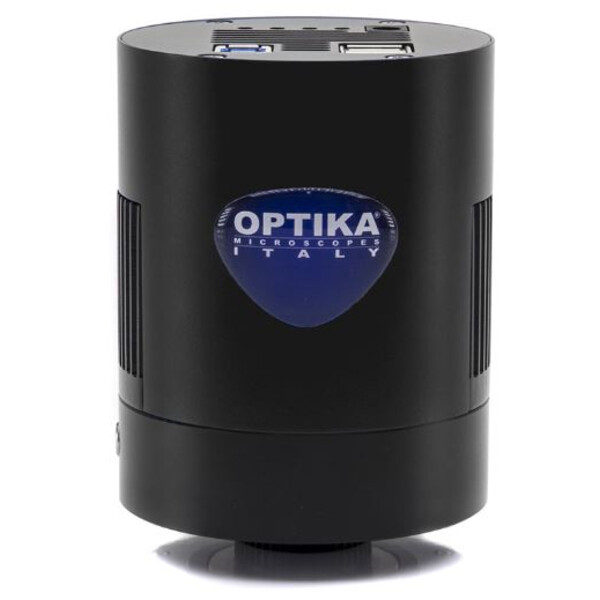

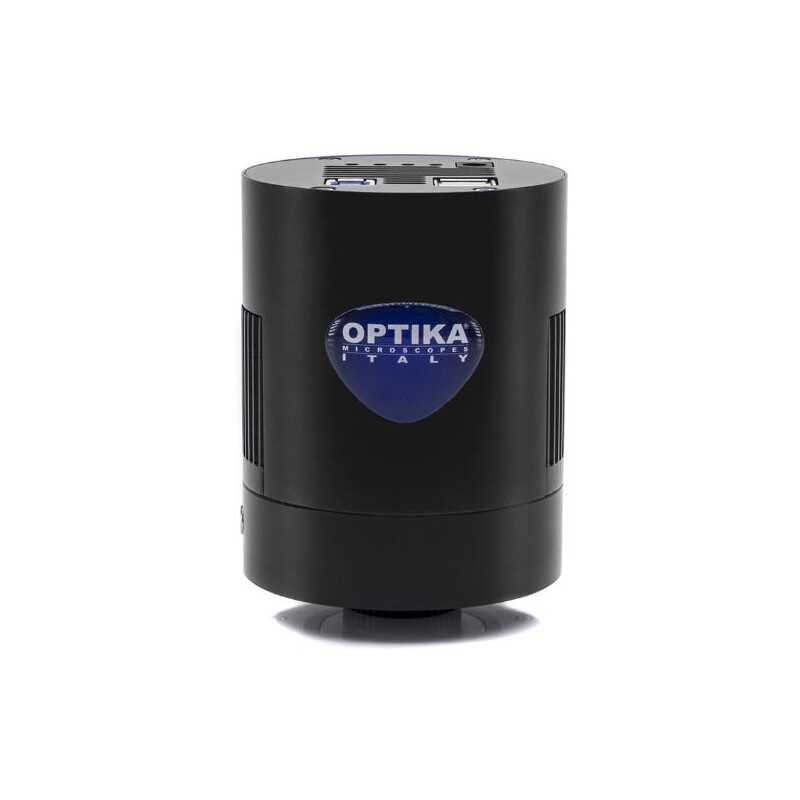

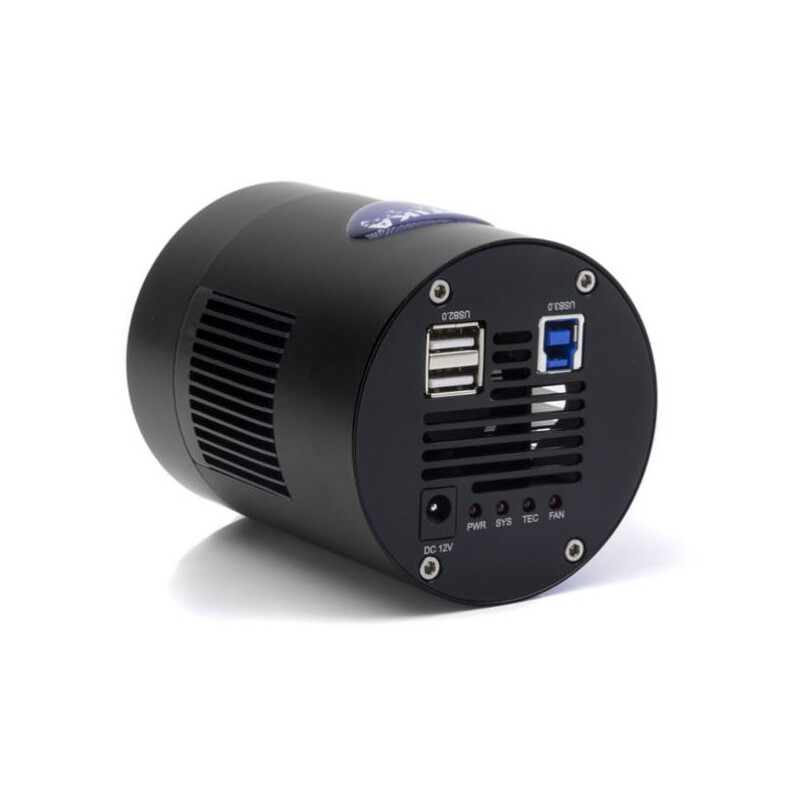

P20CM Pro Cooled Monochromatic camera, 20 MP CMOS, USB3.0
Ultra-professional yet intuitive camera with incredibly high resolution (20 MP), cooled large SONY EXMOR CMOS monochrome sensor and USB3.0 connection, recommended for specific scientific applications especially connected to fluorescence microscopy. The cooling system affects sensitivity and therefore image clarity. The monochrome sensor makes it perfect for fluorescence imaging. The high resolution makes these models interesting also for morphological imaging, patch clamping and network studies. The compact and elegantly designed housing conceals the very latest in camera technology. Images will be of the highest quality and rich in contrast and detail with the top-class SONY sensors, worldwide recognized, ensuring beautiful true-to-life color and delivering incredibly accurate colors just as you see them. Ideal to be connected to all the trinocular tube of different brands using the focusable C-Mount adapter (to be purchased separately). Downloadable, free of charge software (Windows, Mac OS or Linux) is always available to enable the latest updates.
Recommended for special applications, including fluorescence
- USB output
- Cooling Cooling Temperature -45°c
- C-Mount
- Dimensions (mm) 100 (diam) x 100 (H)
- Weight (kg) 0.59
- Camera resolution (n° of pixels: W x H) 5440x3648
- Monochrome
- Sensor Size 1"
- Sensor Technology CMOS
- Sensor Type SONY EXMOR
- Image Format 3/2
- Pixel Size (mm) 2.4x2.4
- Acquisition technology Rolling shutter
- Dynamic range (DB) 66.30
- G sensitivity 388mV at 1/30s
- Dark Signal 0.21mV at 1/30s
- ADC conversion 14 Bit
- Exposure time 0.1 msec - 3600 sec
- Binning 1x1; 2x2; 3x3
- IR filter IR filter range (nm) 380-650 (IR CUT)
- PC Camera resolution (MP) 20
- USB standard USB3.0
- Frame rate full resolution (fps) 17.8@5440x3648, Frame rate other resolution (fps) 41@4096x2160; 51@2736x1824; 64@1824x1216
- Connector USB
- Output voltage PC USB
- LED indicator Yes
- Cooling Power 12V 3A
- Working Temperature -10°C up to +50°C
- Storage Temperature -20°C up to +60°C
- Relative Humidity 30% to 80%
- Storage Humidity 10% to 60%
- OS Windows 7
- OS Windows 8
- OS Windows 10 (32Bit)
- OS Windows 10 (64Bit)
- OS Osx (MAC Osx) starting from 10.7.5
- OS Linux
- PC SW PROVIEW
- PC SW LITEVIEW
- PC CPU: Intel Core2 - 2.8GHz or higher
- PC RAM: 2GB or more
- PC USB 3.0
Dlivery
- Calibration slide, USB cable (1.8m),
