kamera, C-WF, färg, CMOS, 1/2.5, 5MP, WiFi

C-WF

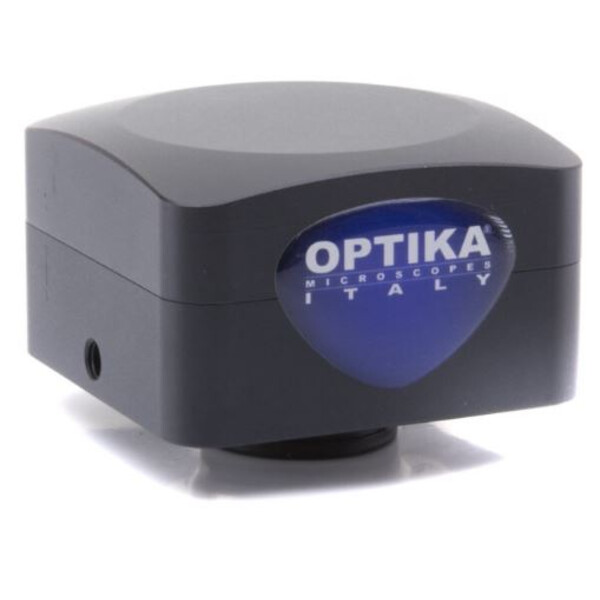

C-WF camera, 5 MP CMOS, Wi-Fi, multi-plug

C-WF

C-WF camera, 5 MP CMOS, Wi-Fi, multi-plug

• Ideal for interactive, flexible and dynamic learning processes
• Simple, intuitive operation with powerful software
• Universal connection to any microscope brand
• Direct eyepiece & trino port connection
• 1 MP images
• Wi-Fi interface
• Direct Wi-Fi connection (no router is required)
• Connectable to PC, smartphones, tablets and any other device
• Supported by any device (PC, tablet or smartphone)
• Image and video capturing function when used in Wi-Fi mode
• Reliable colour fidelity
• C-mount projection lens and rings included
• Downloadable, free of charge software
• OPTIKA ProView & LiteView for Windows
• OPTIKA LiteView for Mac OS or Linux”

WiFi output Yes

C-Mount Yes

Dimensions (mm) 67 x 67 x 46

Weight (kg) 0.44

Camera resolution (n° of pixels: W x H) 2592x1944

Color / Monochrome Color

Sensor Size 1/2.5"

Sensor Technology CMOS

Sensor Type SONY EXMOR

Image Format 16/9

Pixel Size (mm) 2.2x2.2

Acquisition technology Rolling shutter

Sensitivity 1V/lux-sec

Signal/Noise Ratio (DB) 43

Dynamic range (DB) 61

ADC conversion 8 Bit - 12Bit

Color Depth 8 Bit

Exposure time Auto

Binning 2x2

IR filter Yes

IR filter range (nm) 380-650 (IR CUT)

WiFi resolution (MP) 1

WiFi Frame rate full resolution (fps) 10@1280x720

WiFi Speed 802.11n 150Mbps

WiFi SignalFrom the camera

WiFi Signal ready About 10 seconds after turning on

Max Users 3

TypeExternal

Connector USB

Power plug type Multiplug (EU, UK, US)

Input voltage 100/240 Vac, 50/60Hz

Output voltage 5 Vdc 500mA

WiFi

Camera Power Supply

General specifications

Sensor OPTIKA MICROSCOPES ITALY

www.optikamicroscopes.com - [email protected]

Optical adapter (for 23mm eyepiece tube) 0.5x

Diameter of adapter ring (mm) 30

Diameter of adapter ring (mm) 30.5

Calibration slide Yes

Working Temperature -10°C up to +50°C

Storage Temperature -20°C up to +60°C

Relative Humidity 30% to 80%

Storage Humidity 10% to 60%

OS Windows 7

OS Windows 8

OS Windows 10 (32Bit)

OS Windows 10 (64Bit)

OS Osx (MAC Osx) starting from 10.7.5 (only LITEVIEW)

OS Linux (only LITEVIEW)

PC SW PROVIEW

PC SW LITEVIEW

PC CPU: Intel Core2 - 2.8GHz or higher

PC RAM: 2GB or more
