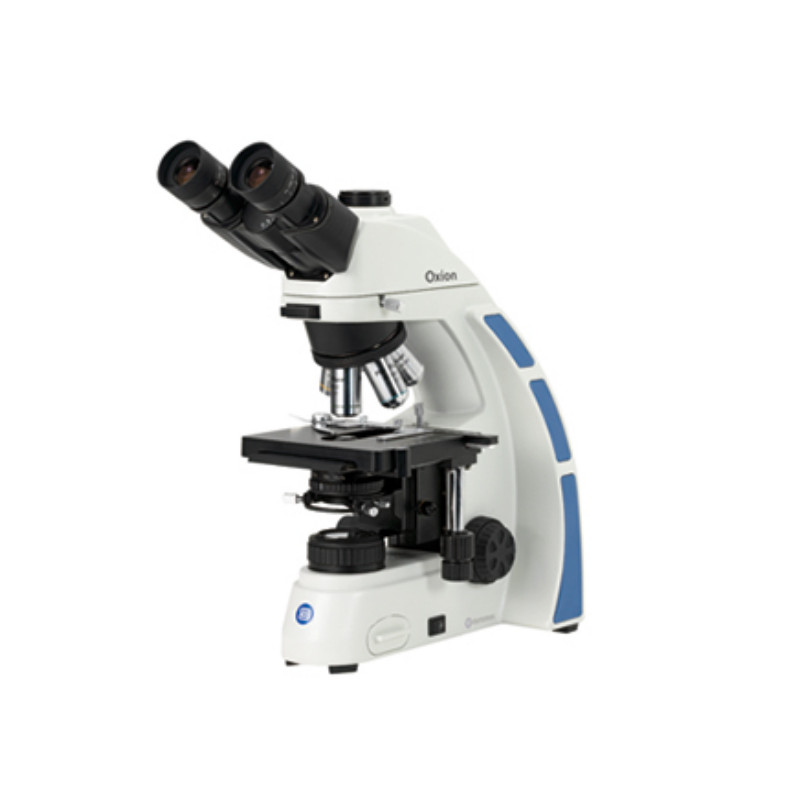

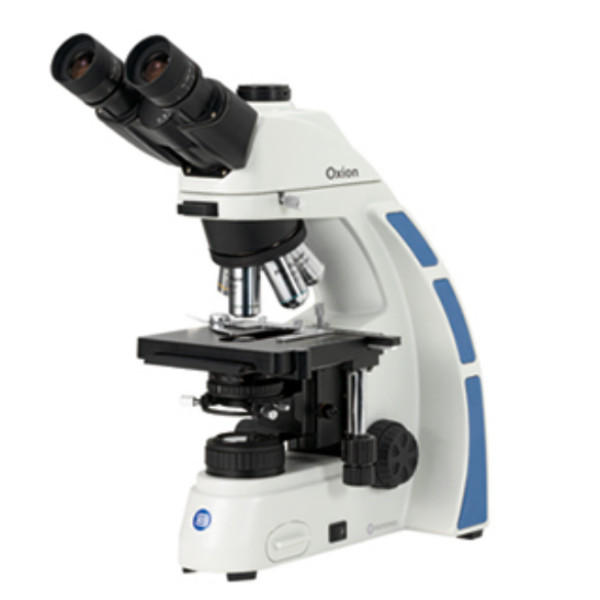

Euromex Oxion series
Thanks to the high resolving power, a 3 Watt transmitted LED illumination, a 100 Watt Mercury fluorescence epi-illumination, multiple phase contrast, dark field set and the optional Apochromatic objectives, these microscopes can be used for all kind of demanding applications as well in fundamental research
- Wide Field eyepieces HWF 10x / 22
- Semi Plan SMP 4x, 10x, S40x and S100x-oil, IOS, objectives for bright field contrast
- Plan PL 4x, 10x, 20x, S40x, S60x and S100x-oil, IOS, objectives for bright field contrast
- Plan Phase PLPH 10x, 20x, S40x and S100x-oil, IOS, objectivesfor phase contrast
- Plan Semi-Apochromatic PL APO 4x, 10x, 20x, S40x and S100x-oil, IOS, objectives for bright field contrast
- Plan Semi-Apochromatic PL APO FLUAREX 4x, 10x, 20x, S40x and S100x-oil, IOS, objectives for fluorescence
- Binocular withor without photo port
- Height adjustable Abbe condenser N.A. 1.25 with holder for phase sliders
- Zernike phase and bright field disc condenser with 4 phase rings
- Zernike phase and bright field disc condenser with 3 phase rings + dark field stop
- Cardioid dark field Oil-immersion condenser with built-in 5 W LED illumination
- Large stage with ball beared XY translation stage with optional heating elements and temperature controller
- Adjustable 3 Watt LED illumination
- 100 Watt mercury vapor lamp for fluorescence
- Many fluorphore filter sets available
Models OX.3012 and OX.3015 are equiped with standard Semi Plan IOS objectives for bright field applications
Models OX.3020 to OX.3035 are equiped with standard Plan IOS objectives for bright field applications
Models OX.3040 to OX.3047 are equiped with Plan Phase IOS objectives for phase contrast
Models OX.3050 to OX.3065 are equiped with Plan Semi-Apochromatic IOS objectivesfor bright field applications
Models OX.3070 to OX.3085 are equiped witht Plan Semi-Apochromatic IOS objectives for fluorescence applications
Model OX.3064 is equipped with standard Plan IOS objectives and a cardioid oil-immersion condenser with built-in 5 W LED illumination for dark field applications and living blood analysis
