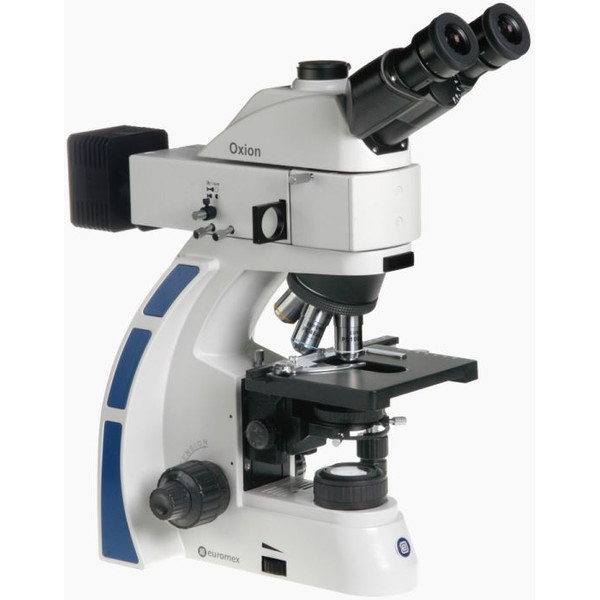

Euromex Oxion series
Thanks to the high resolving power, a 3 Watt transmitted LED illumination, a 100 Watt Mercury fluorescence epi-illumination, multiple phase contrast, dark field set and the optional Apochromatic objectives, these microscopes can be used for all kind of demanding applications as well in fundamental research
- Wide Field eyepieces HWF 10x / 22
- Semi Plan SMP 4x, 10x, S40x and S100x-oil, IOS, objectives for bright field contrast
- Plan PL 4x, 10x, 20x, S40x, S60x and S100x-oil, IOS, objectives for bright field contrast
- Plan Phase PLPH 10x, 20x, S40x and S100x-oil, IOS, objectivesfor phase contrast
- Plan Semi-Apochromatic PL APO 4x, 10x, 20x, S40x and S100x-oil, IOS, objectives for bright field contrast
- Plan Semi-Apochromatic PL APO FLUAREX 4x, 10x, 20x, S40x and S100x-oil, IOS, objectives for fluorescence
- Binocular withor without photo port
- Height adjustable Abbe condenser N.A. 1.25 with holder for phase sliders
- Zernike phase and bright field disc condenser with 4 phase rings
- Zernike phase and bright field disc condenser with 3 phase rings + dark field stop
- Cardioid dark field Oil-immersion condenser with built-in 5 W LED illumination
- Large stage with ball beared XY translation stage with optional heating elements and temperature controller
- Adjustable 3 Watt LED illumination
- 100 Watt mercury vapor lamp for fluorescence
- Many fluorphore filter sets available
Models OX.3012 and OX.3015 are equiped with standard Semi Plan IOS objectives for bright field applications
Models OX.3020 to OX.3035 are equiped with standard Plan IOS objectives for bright field applications
Models OX.3040 to OX.3047 are equiped with Plan Phase IOS objectives for phase contrast
Models OX.3050 to OX.3065 are equiped with Plan Semi-Apochromatic IOS objectivesfor bright field applications
Models OX.3070 to OX.3085 are equiped witht Plan Semi-Apochromatic IOS objectives for fluorescence applications
Model OX.3064 is equipped with standard Plan IOS objectives and a cardioid oil-immersion condenser with built-in 5 W LED illumination for dark field applications and living blood analysis

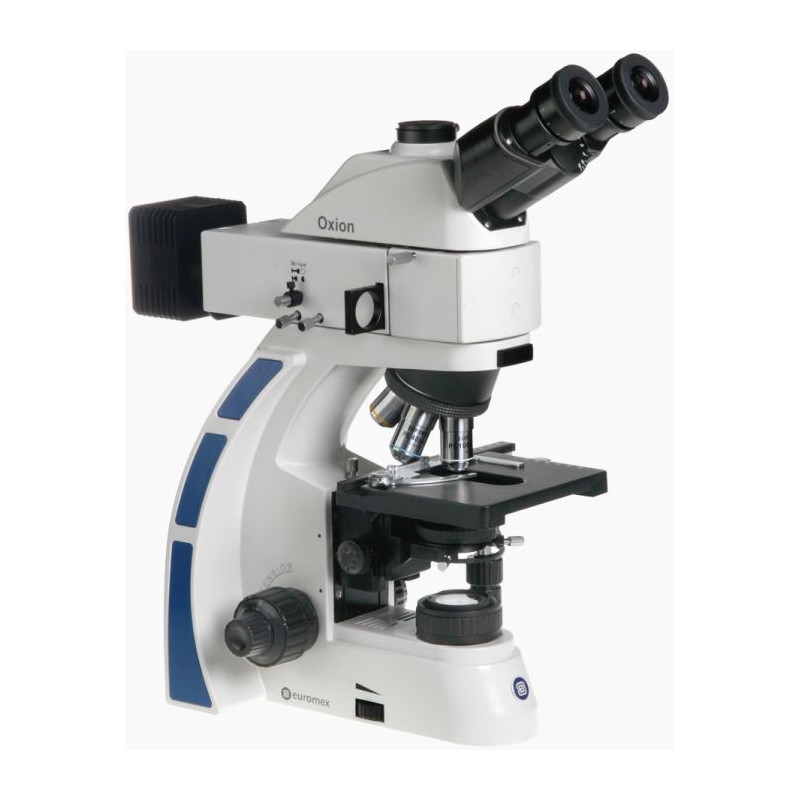

Oxion for materials science OX.3245
HIGHLIGHTS
•Binocular model
• HWF 10x/22 mm eyepieces
• Reversed quintuple nosepiece
• Plan M-IOS objectives
• Transmitted 3 W NeoLED™ illumination
• Reflected 3 W NeoLED™ illumination
• Polarization and analyzer filters
• 10 years warranty
TECHNICAL SPECIFICATIONS
EYEPIECES: HWF 10x/22mm eyepieces. All eyepieces can be secured
HEAD: Binokular Siedentopf head with 30° inclined tubes. Interpupillary distance from 48 to 75 mm, Diopter ± 5 diopter adjustment on both eyepieces A unique rotating system allows ergonomic positioning of both tubes in an upper (431 mm) and in a lower position (397 mm)
NOSEPIECE: Reversed nosepiece for a maximum of 5 objectives on ball bearings
OBJECTIVES: (IOS-infinity corrected system) Standard configurations equipped with infinity corrected DIN long working distance LWD plan M-IOS 5x/0.14, 10x/0.25, 20x/0.40 and LWD plan semi apochromatic M-IOS 50x/0.55 and 100x/0.80 objectives All optics have an anti-reflection coating for maximum light throughput and are anti-fungus treated
FOCUSING: Coaxial coarse and fine adjustments, 200 graduations, 1 µm per graduation, 200 µm per rotation, total travel range is approximately 28 mm, Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustments are equipped with friction controlstage 180 x 145 mm stage with integrated mechanical 78 x 45 mm X-Y stage, is supplied with plain metal and plain glass inserts. A ceramic stage is also available on request
CONDENSER FOR TRANSMITTED ILLUMINATION: Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
TRANSMITTED ILLUMINATION: All models are supplied with 3 W adjustable NeoLed™ illumination with integrated 100-240 V power supply. Köhler illumination with field diaphragm
REFLECTED EPI-ILLUMINATION: Intensity adjustable 3 W NeoLED™ Köhler illumination with external 110-240 Vac / 5 Vdc power supply. Push-pull type 90° rotatable polarizer and fixed analyzer. Built-in condenser with field and aperture iris diaphragm. Oblique lighting feature. Supplied with blue and green filter
PACKAGE CONTENT: Supplied with power cord, dust cover, a spare fuse and user manual. All packed in a polystyrene box
Similar to illustration.
