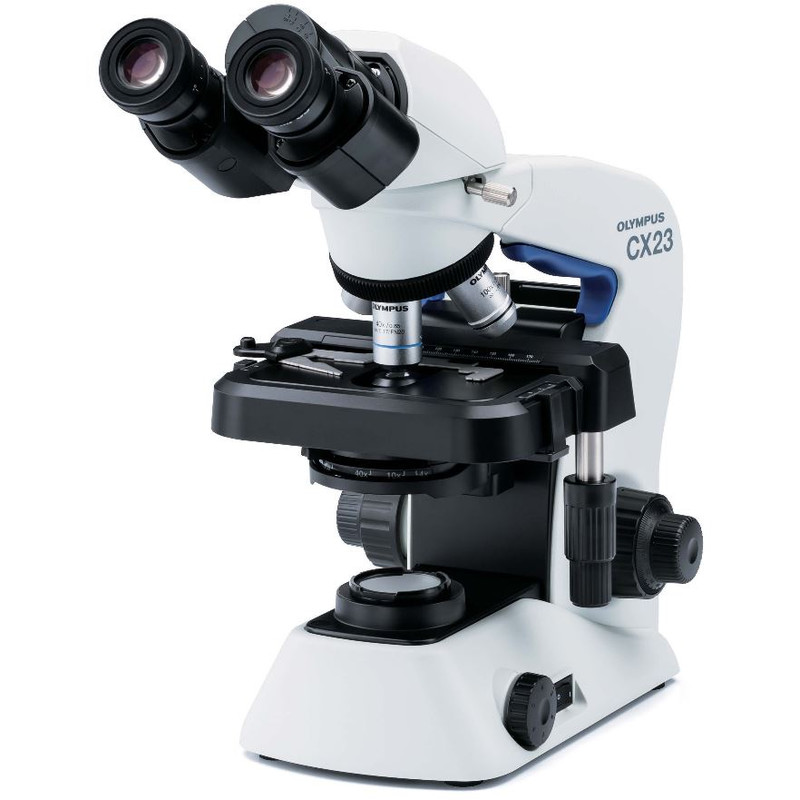

Mikroskop Olympus CX23 RFS1, bino, oändlighet, plan, 4x,10x, 40x, 100x, LED

Olympus CX23 RFS1 Brightfield 100X (E07MIS0010)

The CX23 series of microscopes from Olympus have become our customers’ most popular educational microscopes over the past 2 years! Olympus offers these microscopes with economical LED lighting technology!

User-friendly Microscope for the Classroom

Focused on improving workflow for educational microscopy, the CX23 upright microscope requires minimal setup

Upright microscope set for transmitted light observation

• integrated LED illumination
• quadruple nosepiece
• fixed mechanical stage (120 x 132 mm, travelling range 76 x 30 mm)
• right hand low drive control
• specimen holder for one slide
• Abbe condenser, NA 1.25
• Coaxial/fine focus, complete stroke 15 mm, fine stroke 300 μm/rotation
• binocular tube with two widefield eyepieces for FN20 and 30° inclination
• interpupillary distance adjustment 48-75 mm
• Plan 4x, NA = 0.1, WD = 27.8 mm, CC= -
• Plan 10x, NA = 0.25, WD = 8 mm, CC = -
• Plan 40x, NA = 0.65, WD = 0.60mm, CC = 0.17
• Plan 100x, NA = 1.25, WD = 0.13 mm, CC =-
• Wide range power supply (AC 100-240 V 50/60 Hz 0.4 A
• All optics feature antifungus treatment

Included components:

1. Microscope stand CX23LEDRFS1-1-3 with integrated LED illumination (N5731000)
2. Immersion oil 8cc (N5218600)
3. UYCP power cable (035425)
4. Dust cover (038159)
