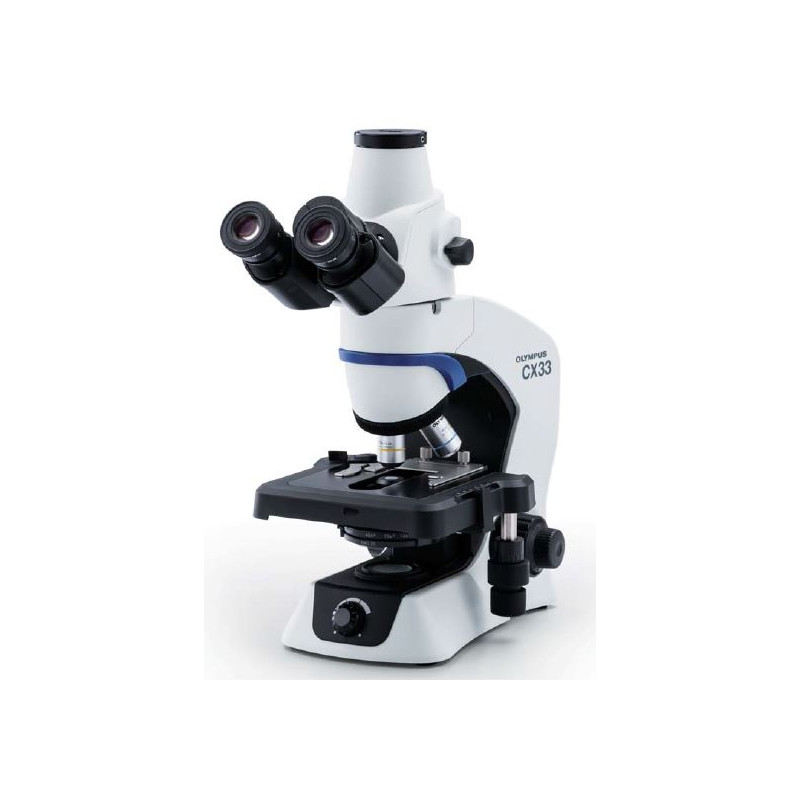

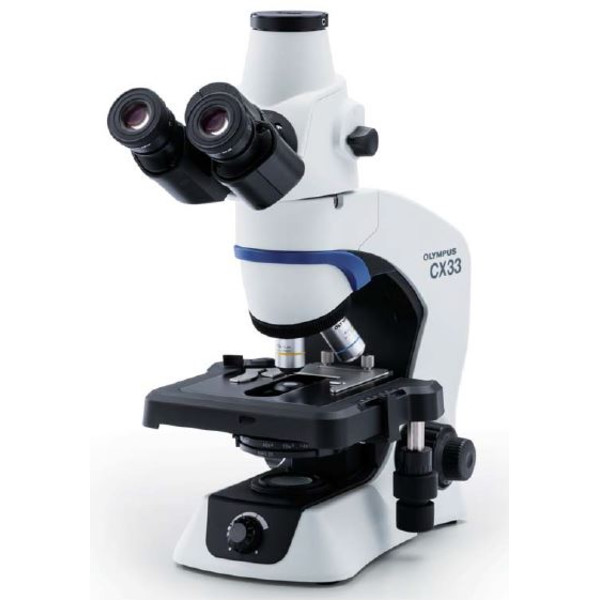

Mikroskop Olympus CX33 trino, l, oändlighet, plan, achro, 40x,100x, 400x, LED

Olympus CX33 left-hand operation (E07MIS0049)

Upright microscope set for transmitted and reflected light observations.

• Integrated LED illumination
• Low-positioned 4x objective nosepiece
• Stage (211 x 154 mm, travel range 76 x 52 mm) with left-sided, low-positioned stage control, focus lock, and standard specimen holder
• Abbe condenser with aperture iris diaphragm and NA 1.25.
• Coaxial coarse and fine adjustment, focus range 15mm
• Trinocular tube (30° inclined, interpupillary distance adjusting range from 48 to 75 mm, dioptre adjustment on both sides)
• Field number 20 (fixed via screws)

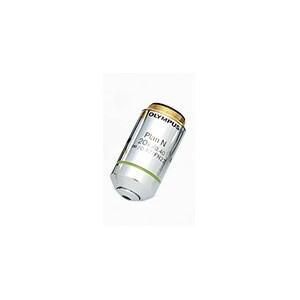

• Plan Achromat 4x, NA = 0.1, AA = 27.8mm
• Plan Achromat 10x, NA = 0.25, AA = 8mm
• Plan Achromat 40x, NA = 0.65, AA = 0.60mm, DK = 0.17

All lenses and eyepieces have an anti-fungal coating

Included components:

• Microscope unit CX33LTFS2-1-2 (N5731600)
• Dust cover (038159)
• Power cable UYCP (035425)
