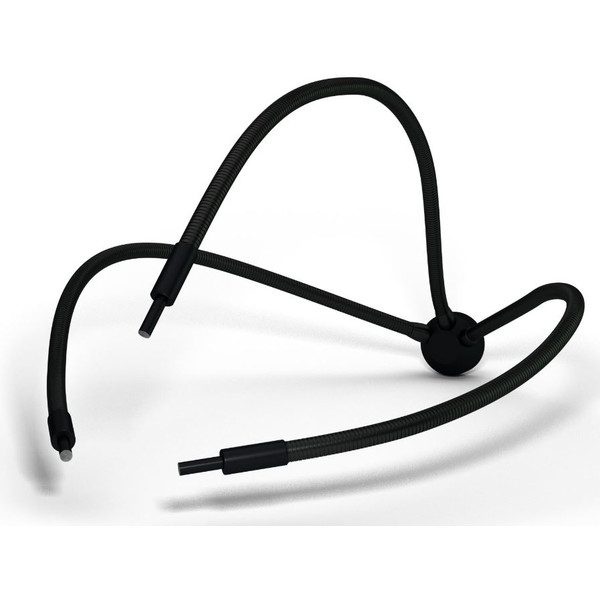

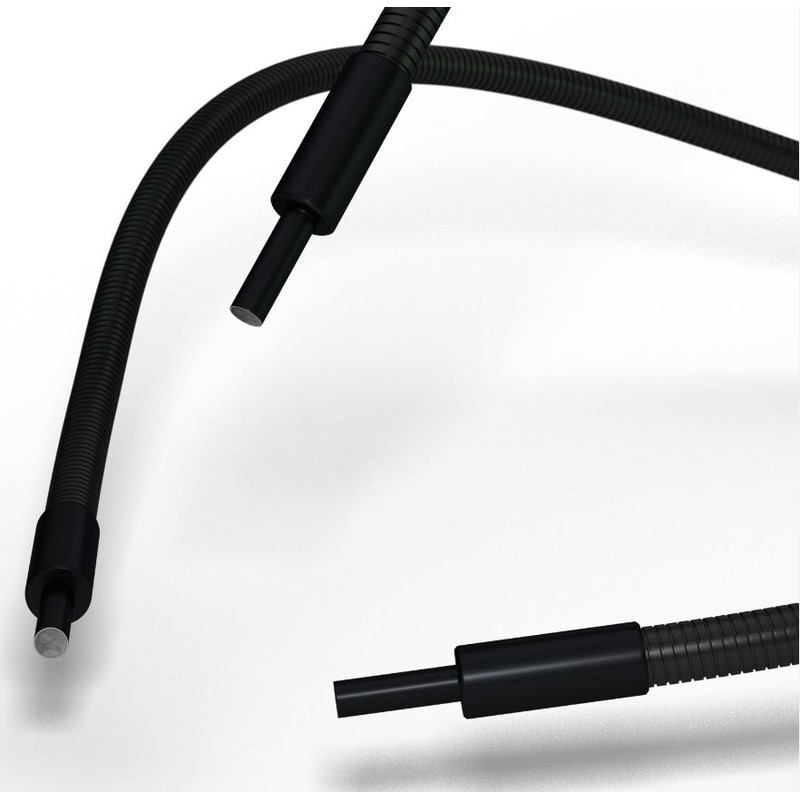

GLS3-800-4.5, 3-armad, armlängd 800 mm, aktiv diameter 4,5 mm

Fiber Optical Light Guide

• For halogen and LED cold light sources
• Low head generation on object
• Versions with several flexible arms
• Best transmission
• High flexibility and luminous efficiency
• Spot illumination
• Adaptable to cold light sources from all manufacturers
• Adaptable to customer needs

Technical Data

Number of arms 3

Diameter active light guide 4,5 mm

Length 800 mm

Light guide access Standard 15 mm

Diameter light output 13 mm

Diameter light input 44 mm

Outer tube diameter 10 mm

Illumination point-like

Beam angle 70°

Temperature input (light source) max. 230°C

Material tube Steel / brass, black painted
