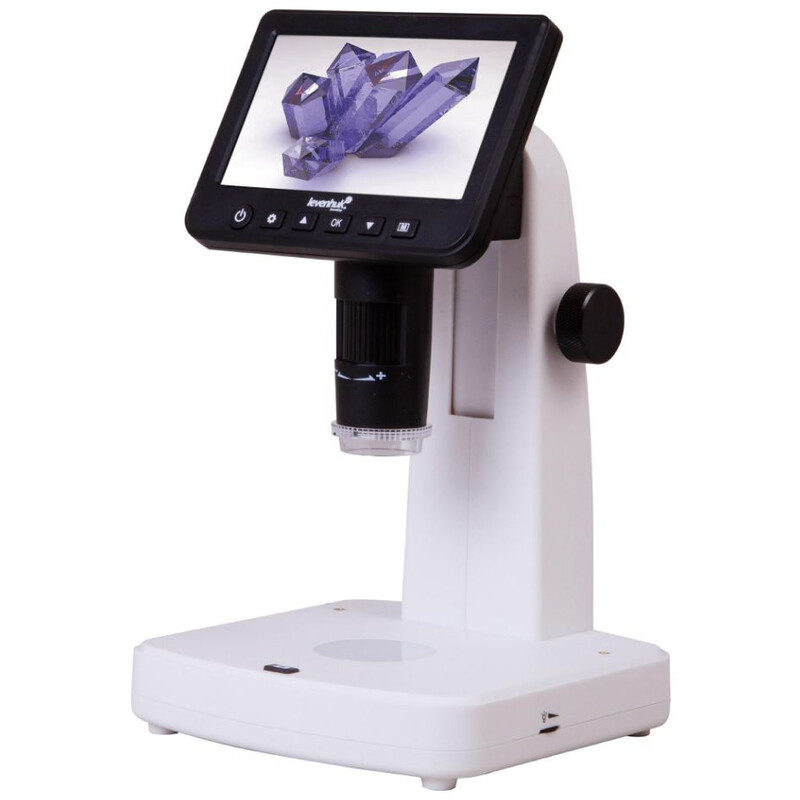

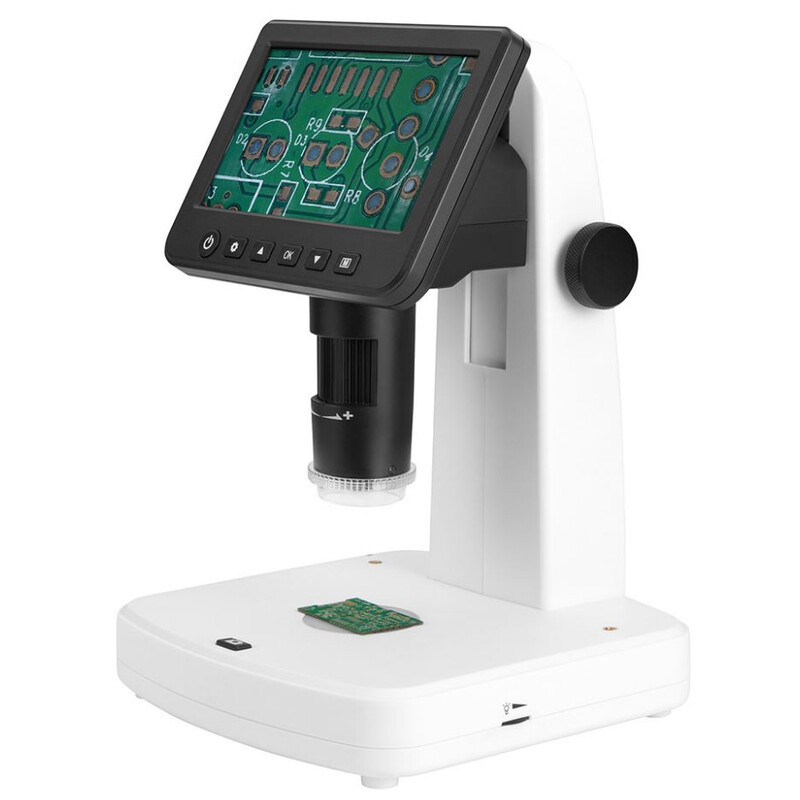

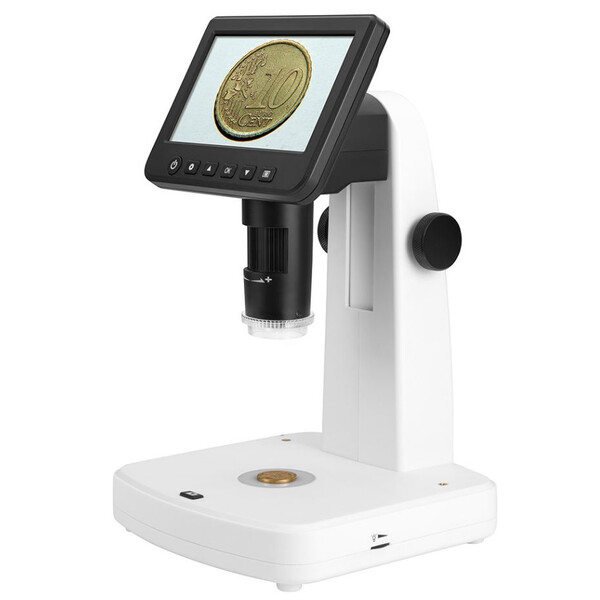

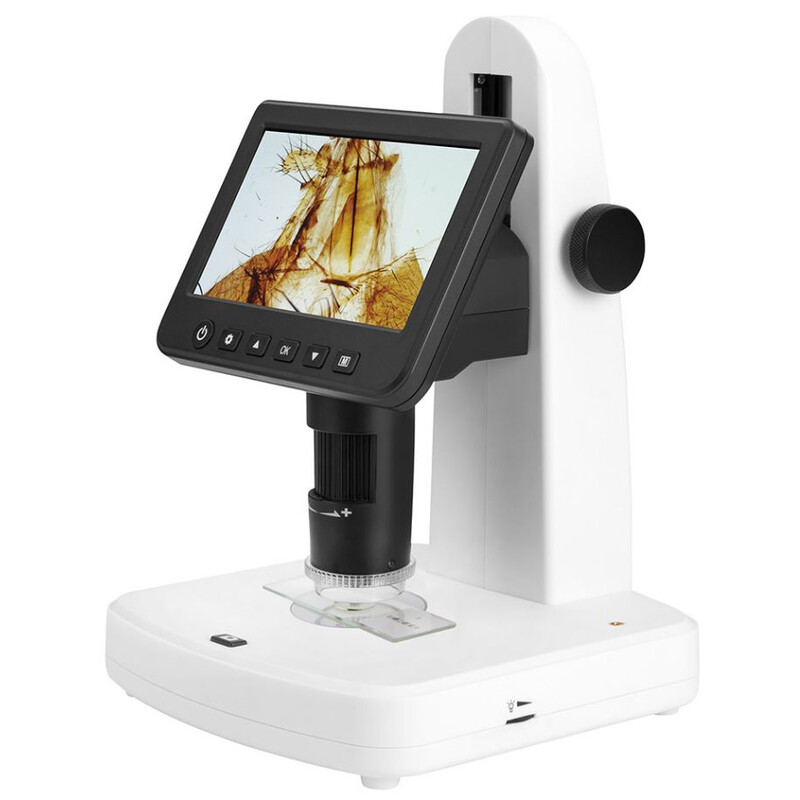

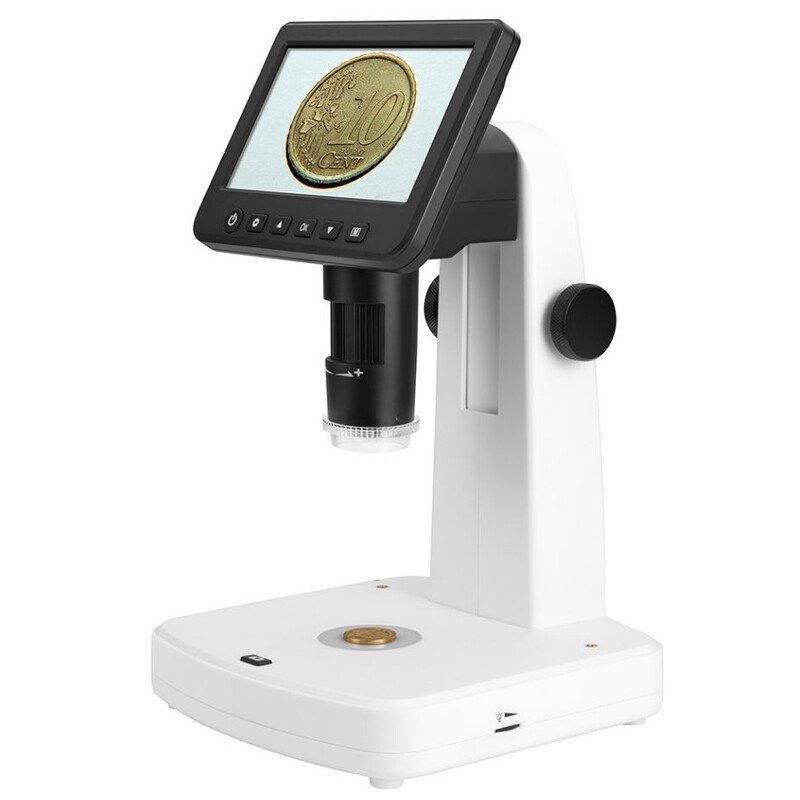

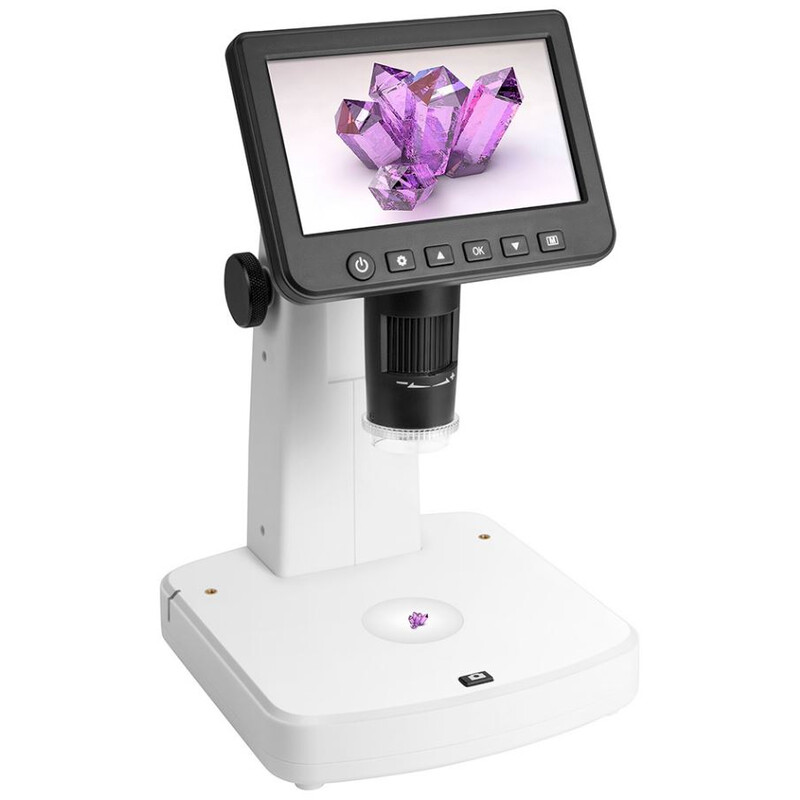

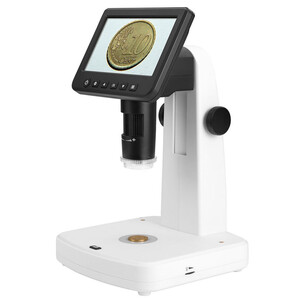

Levenhuk DTX 700 LCD Digital Microscope is designed for studying non-transparent objects. It is suitable for working with jewelry pieces, electronic plates, minerals, coins, and sections of metals. This microscope is also useful for home use, e.g. for studying insects and plants. Levenhuk DTX 700 LCD is equipped with an LCD screen, that reduces eyestrain during lengthy work, and it is more comfortable than looking through an eyepiece of a standard microscope.

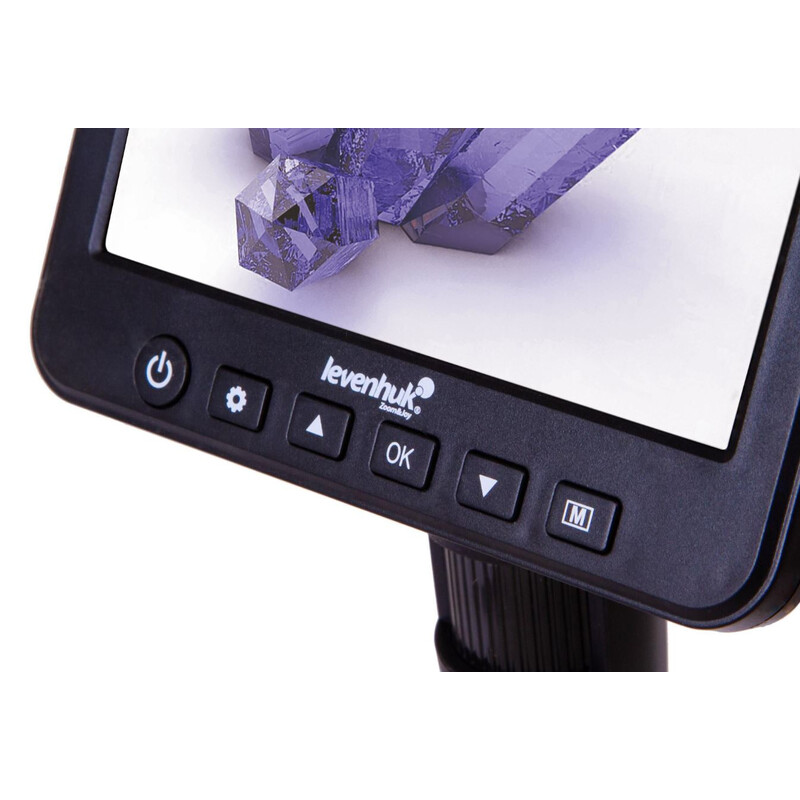

An image is formed by a 5M digital camera. The camera provides 10–300x magnification, and an additional zoom allows for observing objects at up to 1200x magnification. A colorful and detailed image is transmitted to a built-in LCD screen (5"). In addition, a built-in camera allows for capturing images and shooting videos. Control buttons are located right below the screen. They are used to set up photo and video quality, turn in and turn off time-lapse mode, choose circular video mode, and set the date and time.

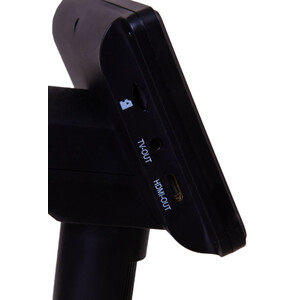

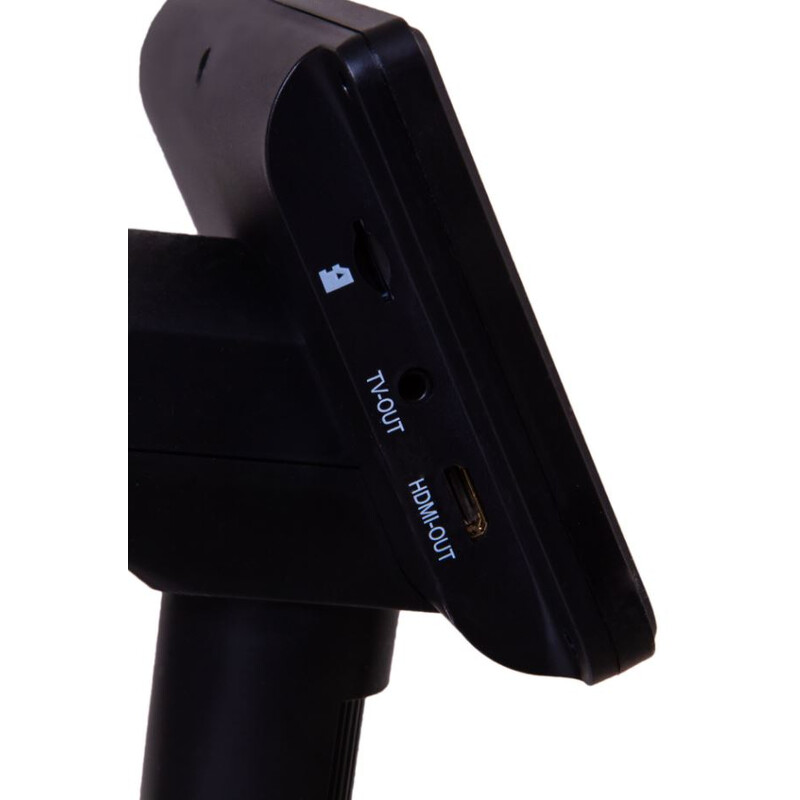

This self-sufficient microscope does not require connecting to external devices. A memory card is required for saving photos and videos (purchased separately). The microscope can be connected to an external monitor, a TV, or a computer. The kit includes all the necessary cables and software. Note: the software that is installed in a computer allows for measuring objects (line, radius, diameter, three-point angle). This software also allows for adding extra images and texts on top of images captured by a microscope.
The illumination system of the microscope consists of 8 bright LED lights with adjustable brightness. There is a built-in polarizing filter, which reduces parasitic reflections when studying shiny metals.
The microscope is powered by an AC supply or a built-in battery, which provides up to three hours of continuous work (charging time 7 hours).
Features:
- Digital microscope with a 5M camera and a color LCD screen
- Upper LED illumination with brightness adjustment
- Built-in polarizing filter
- Ability to record images and videos; an image is transmitted to an external screen
- Image processing software with measurement function
- Powered by an AC power supply or the built-in battery

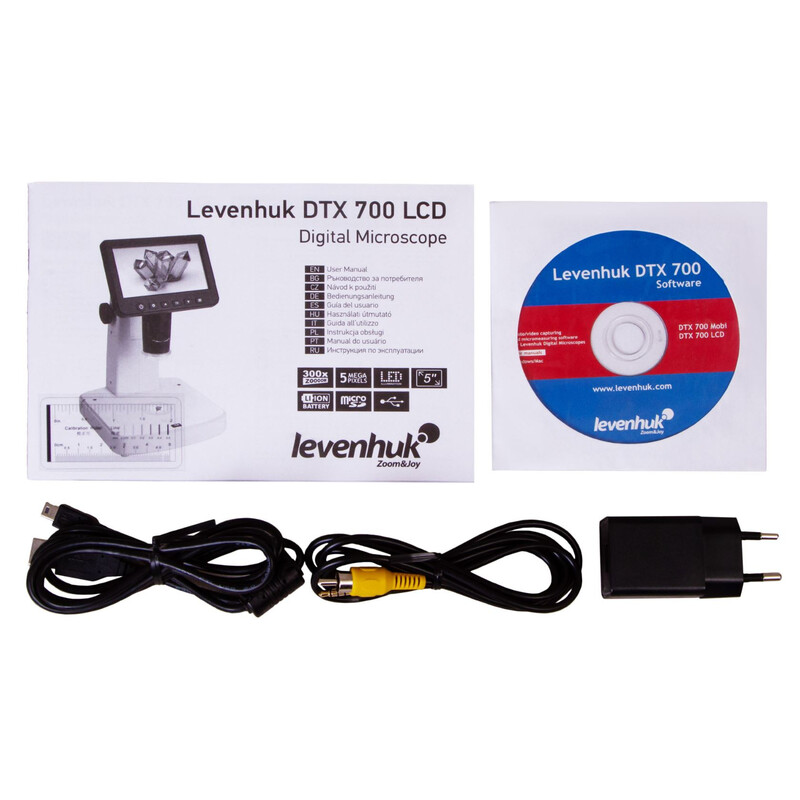

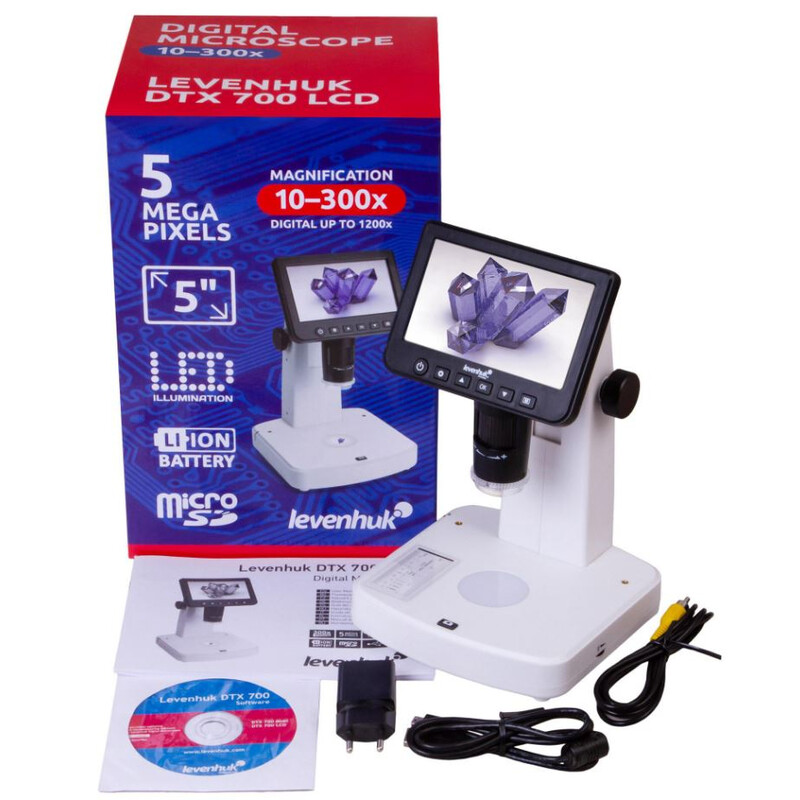

The kit includes:
- Microscope
- Adapter (100–240 V, 50/60 Hz)
- USB cable
- AV cable
- Calibration scale
- Software CD
- User manual
Recommendations on using the software: in order for the PortableCapture Plus program (and its other versions) to operate correctly, please launch the installed application only when your microscope is connected to a PC and ready for observations.
Caution! Remember that mains voltage in the U.S. and Canada is 110V and 220–240V in most European countries. Please refer to the specifications table for the correct mains voltage and never attempt to plug a 110V device into 220V outlet and vice versa without using a converter.
Levenhuk DTX 700 LCD Microscope is not compatible with external digital cameras.
