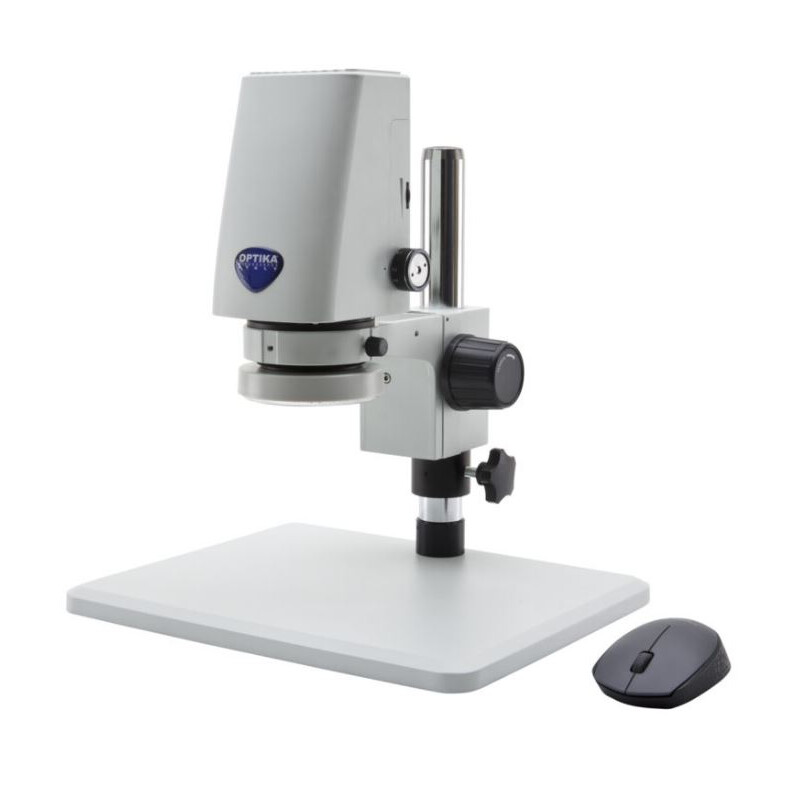

OPTIKA IS-01 is a compact, all-in-one video microscope with integrated HDMI camera and built-in software. Ideal for achieving up to 50X magnifications and performing measurements.It’s recommended when repeatability is required thanks to the click-stop mechanism at different magnifications steps.
With 60 frames per second at full resolution and 1080 HD image quality, you can see, on a plugged HDMI monitor, the same as what you see through the microscope eyepieces.
IS-01/IS-01SMD Main Body
Observation Method Brightfield: Yes
Head Construction material: Plastic mold / Aluminum gears
Objective
Optical system: 160 mm
Anti-fungus treatment: Yes
Objective Type: Achromatic
Zoom: type Parfocal achromatic
Working distance (mm): 110
Standard magnifications: 0.7x-5x
Zoom ratio: 7.14
Zoom click stops_ At 0.7x, 1x, 1.5x, 2x, 2.5x, 3x, 4x, 5x
Focusing System
Type: Coarse
Coarse total travel (mm): 50
Adjustable tension: Yes
Head holder internal diameter (mm): 76 Head
Type: Pillar
Pillar diameter (mm): 32
Resolution (MP): 2
Sensor type: CMOS
Sensor size: 1/2.8”
Sensor aspect ratio: 16/9
Full image size: 1920×1080
Pixel size (μm): 2.9×2.9
Frame rate: 60 fps (1920×1080)
S/N ratio (dB): >50
Dynamic range (dB): >50
Sensitivity (V/lux*s @550nm): 0.4
Exposure time (s): 0.02 – 1/10000
USB type: 2.0
Software: built-in
Incident Illumination
Type: LED
Light source power (W): 1
Illuminance (lux): 60000
Brightness control: Manual
Lifetime (hours): > 65000
Temperature (K): 6300
Max. required power (W): 3
Power Supply for Illumination
Type: External
Microscope connector: Jack, 2.1 mm
Power plug type: Multi-plug (EU, UK, US)
Input voltage: 110/240 Vac, 50/60 Hz
Output voltage: 12 Vdc
Additional Information
Maximum sample height (mm): 150
Product Dimensions
Total height (mm): 510
Total width (mm): 320
Total depth (mm): 260
Weight: 4.3 kg
IS-01SMD
OPTIKA IS-01SMD is a compact, all-in-one video microscope with integrated HDMI camera and built-in software. Ideal for achieving high magnifications and performing measurements. It’s recommended when repeatability is required thanks to the click-stop mechanismat different magnifications steps. With 60 frames per second at full resolution and 1080 HD image quality, you can see, on a plugged HDMI monitor, the same as what you see through the microscope eyepieces. The 3D rotational angle view attachment and the 7x to 50x zoom of IS-01SMD provide an unparalleled real-time 3D view ideal for PCB and Medical Devices inspection that is simple to use and remarkable in image quality. Long working distance allows soldering rework and assembly by watching LCD screen. The Built-in camera is fitten with USB2.0 slots for storing image and video without any computer using a USB flash disk. Thanks to the measurement software, it is possible to perform dimensional measurements on screen.
