Artikelnr: 69960

ESATTO 4

på kort sikt
leveransklar om 1-2 veckor + Frakttid

Ingen leverans möjlig före jul. Beställ en voucher coupon!


Beskrivning av artikel

Tyvärr har den här beskrivningen ännu inte översatts till svenska, så du hittar en engelsk artikelbeskrivning här.

ESATTO 4" is the large dimensions robotic microfocuser that we designed for observatory class telescopes or for astrographs that need for large free aperture, like the Takahashi FSQ-106.

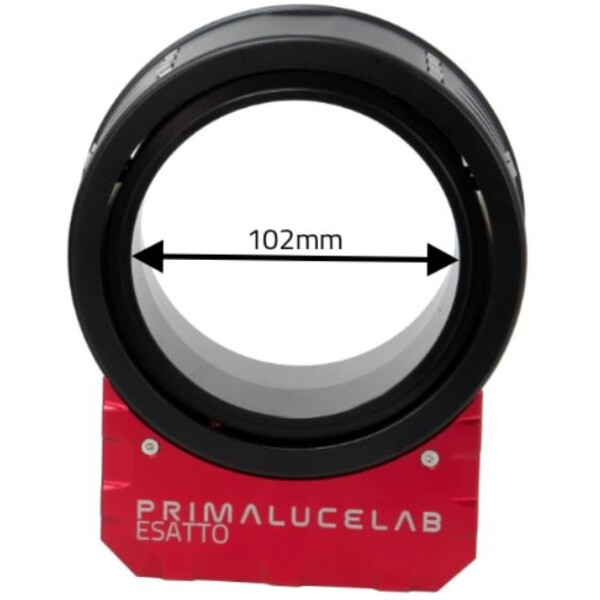

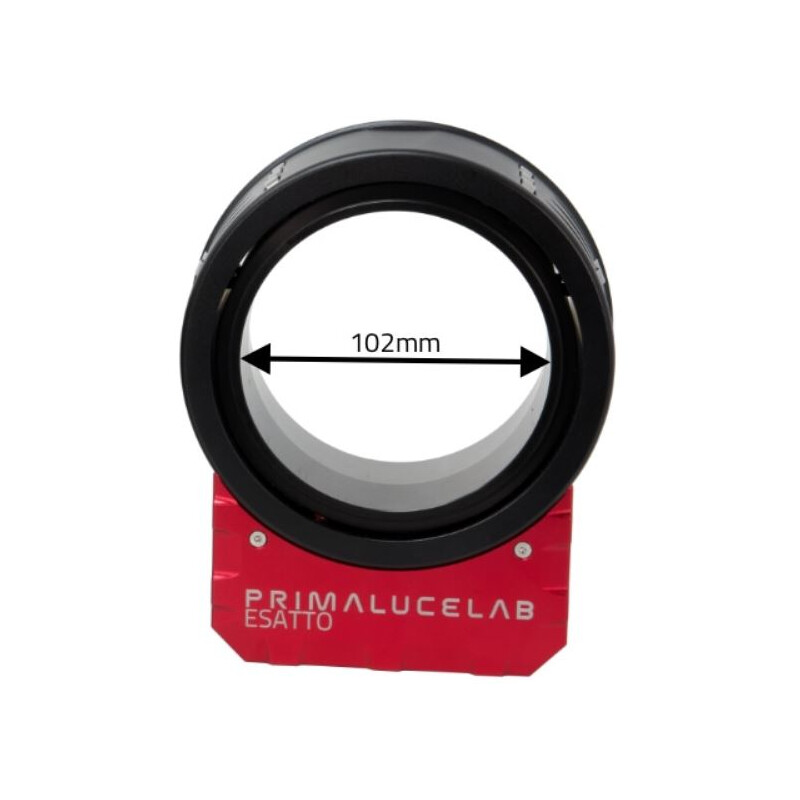

Compared to the smaller models, ESATTO 4" offers a larger free aperture of 102mm, a longer draw tube travel of 35mm and a higher payload capacity of 10 kg, always with the incredible technical features of all the ESATTO focusers: incredible resolution of 0.04 microns per step, USB-C port for computer control, WiFi connection with included Virtual HandPad and ARCO rotator port.

ESATTO 4” robotic microfocuser - main features:

  • Crayford style focuser with 40 ball bearings, specially designed for very high load capacity (up to 10 kgs) with no flexure
  • low profile design with only 65mm thickness (91mm with internal flange).
  • 35mm focuser travel with an incredible resolution of 0.04 microns per step!

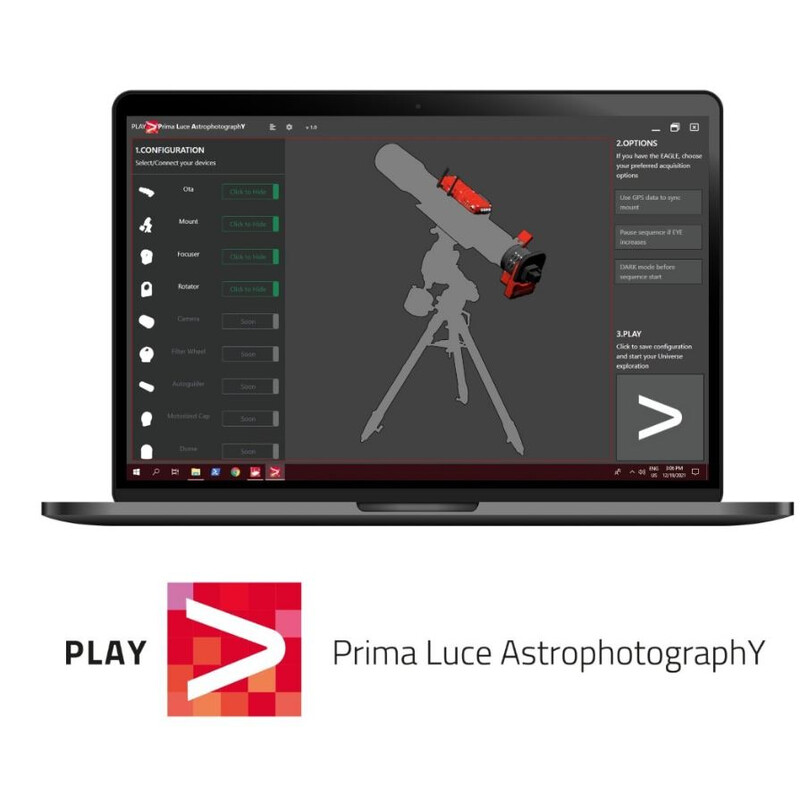

  • remotely controlled from EAGLE or any Windows computer, with FOCUSER Manager control software (tested with Windows 10 computers) or ASCOM drivers.

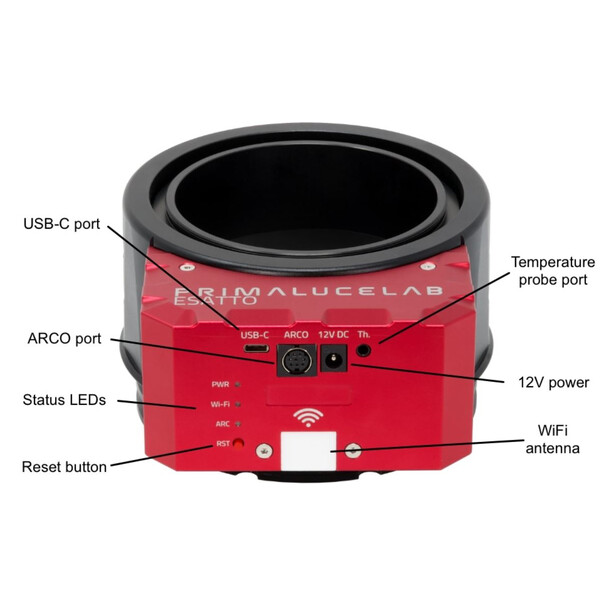

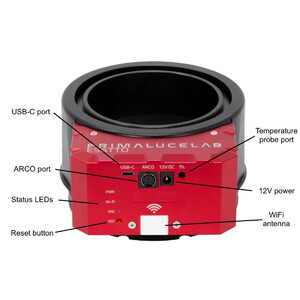

  • USB-C connector offering greater reliability and can be connected to any USB type port thanks to the included cable.

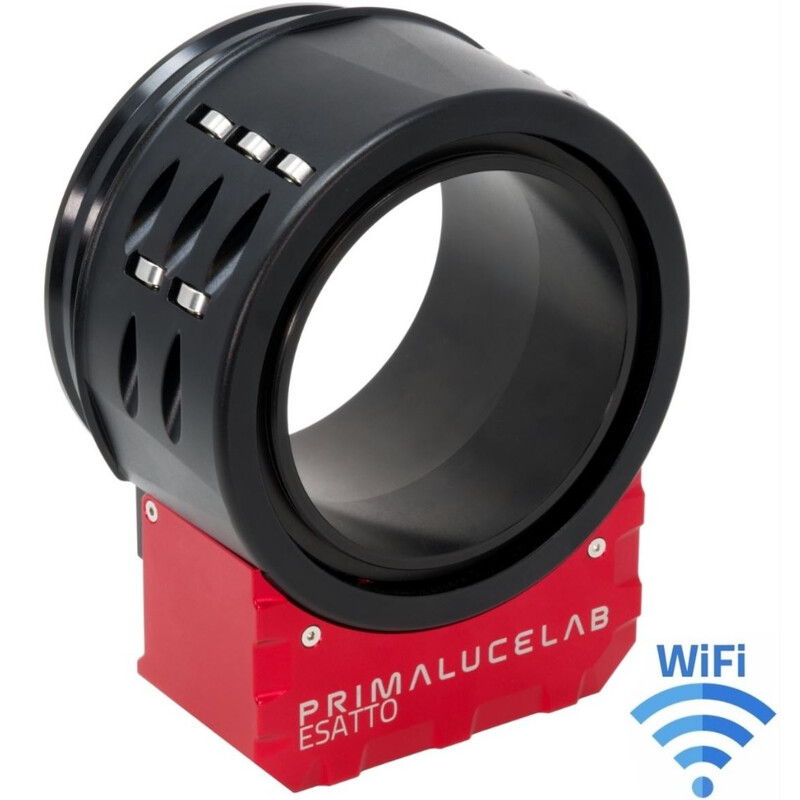

  • Remote control with WiFi from any smartphone, tablet or computer and ESATTO Virtual HandPad app also for visual use!
  • ARCO port to easily connect the ARCO rotator to the ESATTO without the need for additional data or power cables.
  • Weight: 2050 grams

Tekniska data

Prestanda


Fokuseringsnoggrannhet (mm)
0.04
Fri transmission (mm)
102
Fokuseringsväg (mm)
35
Belastbarhet (kg)
10

Särskilda egenskaper


Kan styras via dator
ja

Utrustning


Motordriven
ja

Allmänt


Serie
ESATTO
Vikt (g)
2050

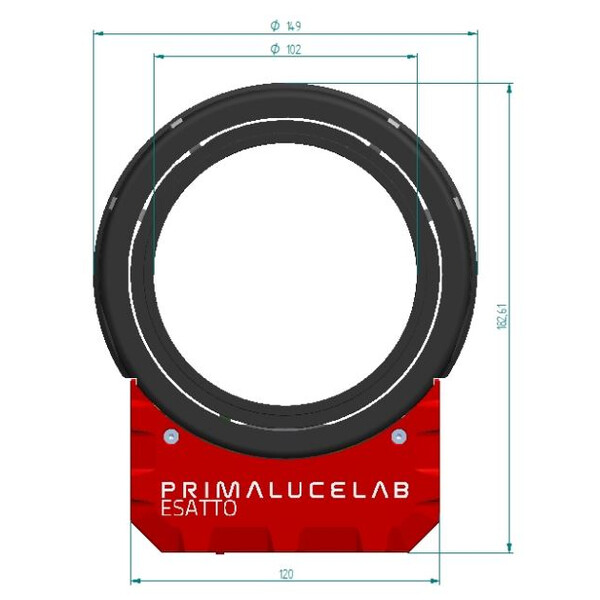

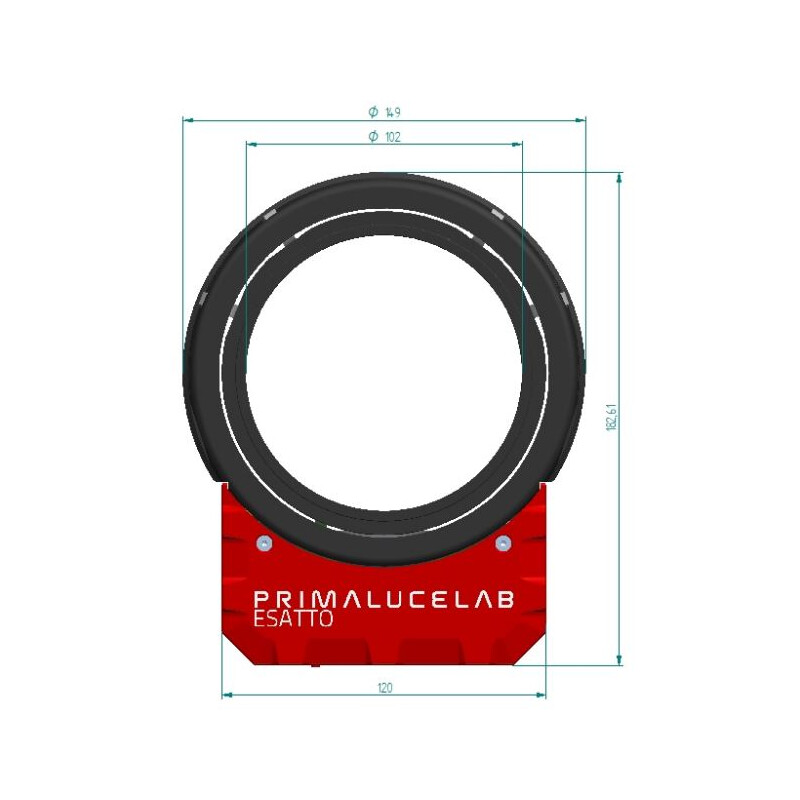

Höjd (mm)
94
Bredd (mm)
89
Längd (mm)
182
Typ av byggnad
Mikrofokuserare
Typ
Fokuserare

Produktsäkerhet

Tillverkare: PrimaLuceLab S.p.A., Via Torricelli 9, 33080 Porcia (PN), IT, www.primalucelab.com
