TS ROT-System - Multi-Purpose Adaptation for Astro-Imaging
The TS Rotation System is a special adaptation with extra functions not available with standard adaptations. It allows you to connect the camera to a telescope or to other adaptors and at the same time introduce a 2" filter between the camera and the telescope with a short length. With several lenses with a short back focus the ROT system might be the only possible solution.
An additional function is a comfortable 360° rotation.
Variants of the TS Rotation System:

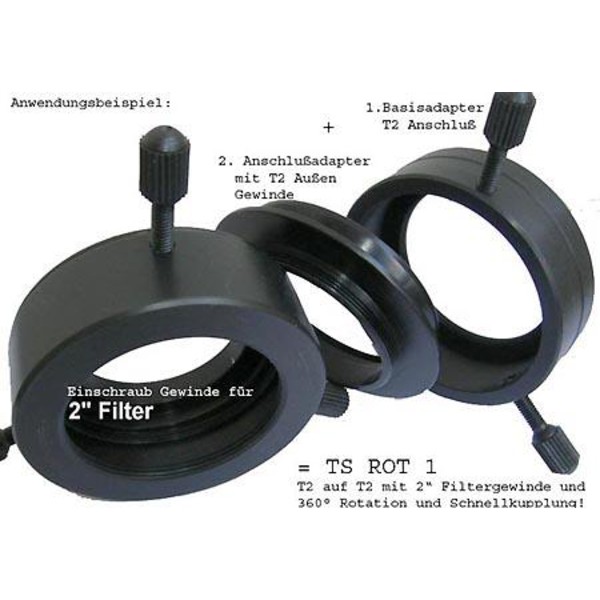

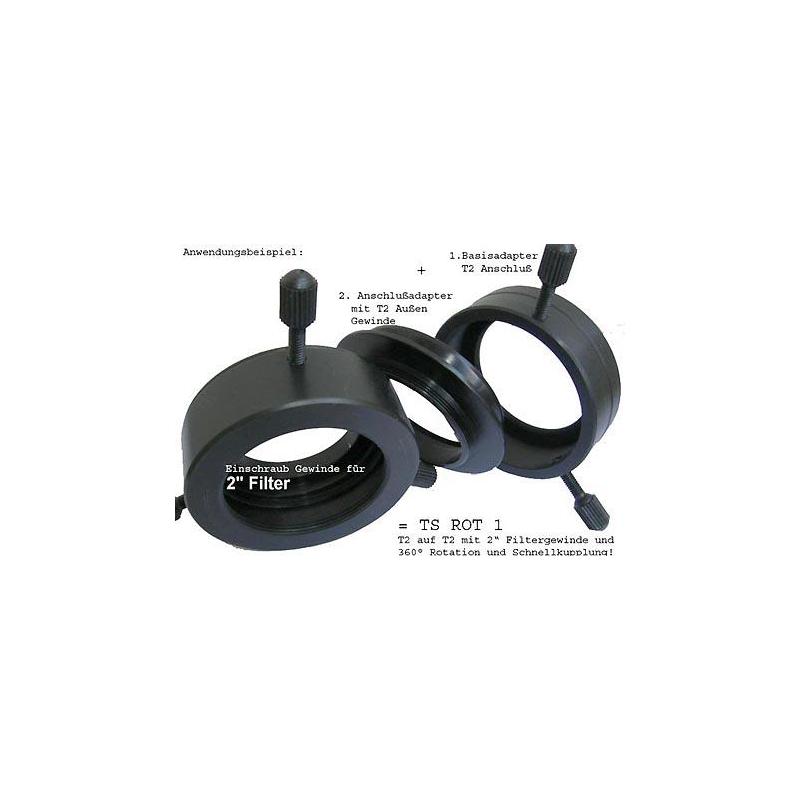

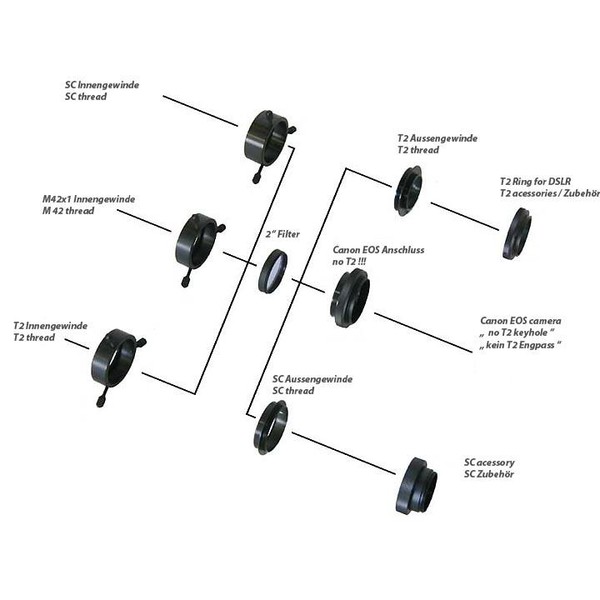

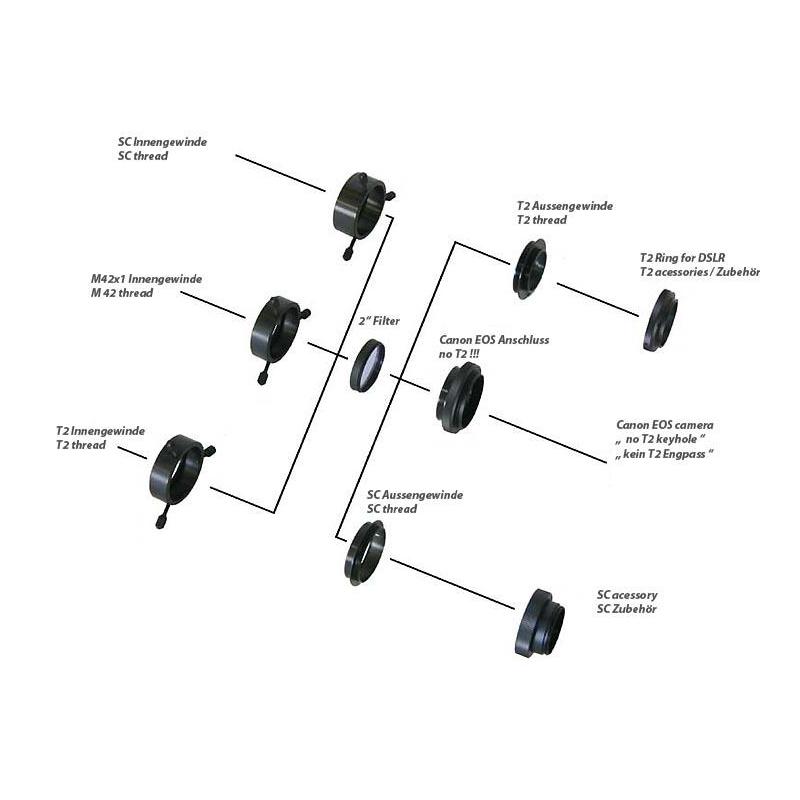

9 different variants of the TS Rotation System are available. Each adaptation consists of two parts - the "base adaptor" and the "camera adaptor".
In the same product category you can find links to the other variants of the ROT system.
Features:
- Very low profile - only 20mm
- Integrated 360° rotation system
- Accepts 2" filters
- Quick release function
- Different adaptations available on both sides
Applications:

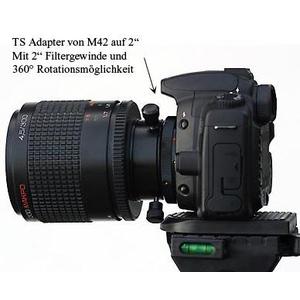

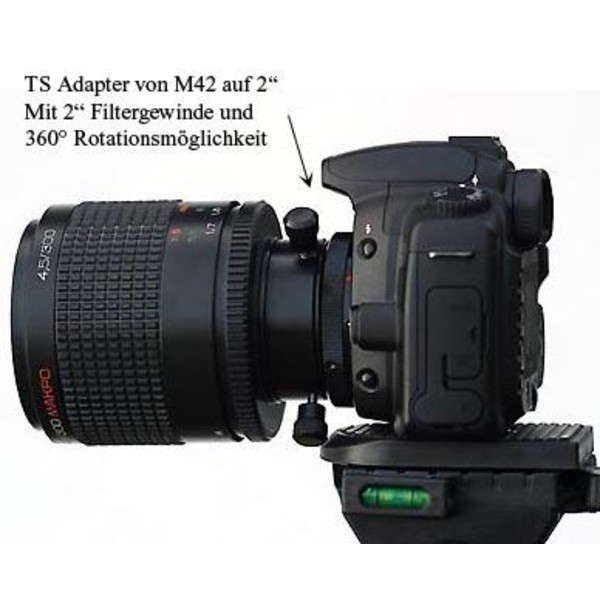

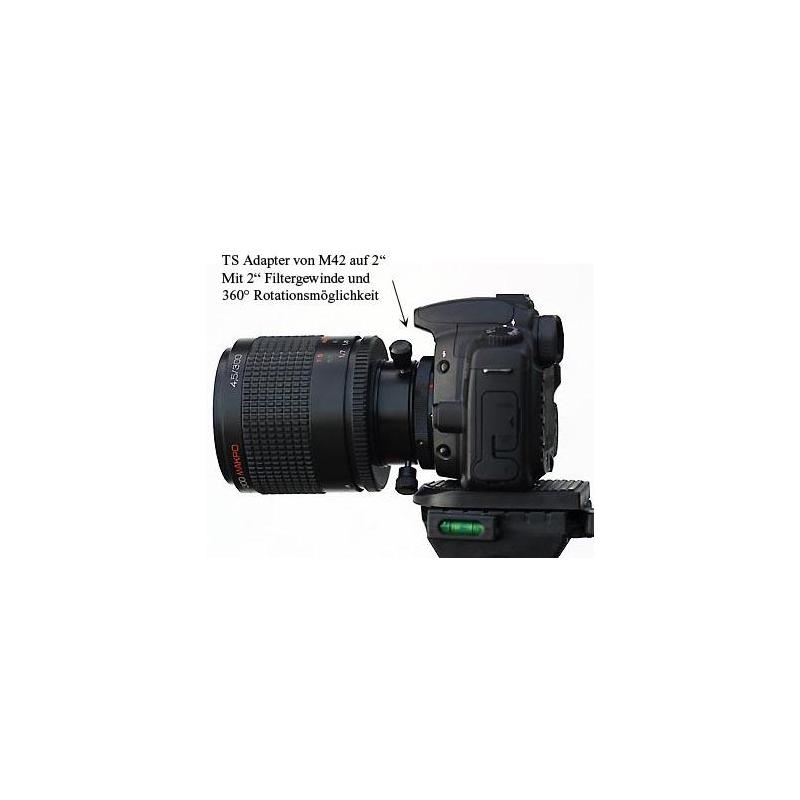

- Using a 2" filter in front of a camera: important in such cases where there is not normally any provision to use filters.
- Dust Protection for the Camera: The filter will protect the inside of the camera from dust.
- Quick Changer: This function allows you to attach or remove the camera within seconds.
- 360° Rotation: a quick and convenient method to rotate the camera without changing the focus.
- 2" Adaptation: The base adaptor has a second function as an ultra-short 2" clamp / visual back that allows you to attach eyepieces etc.
TS Optics is a brand of Teleskop-Service.
