Similar to picture. (Tripod not included)

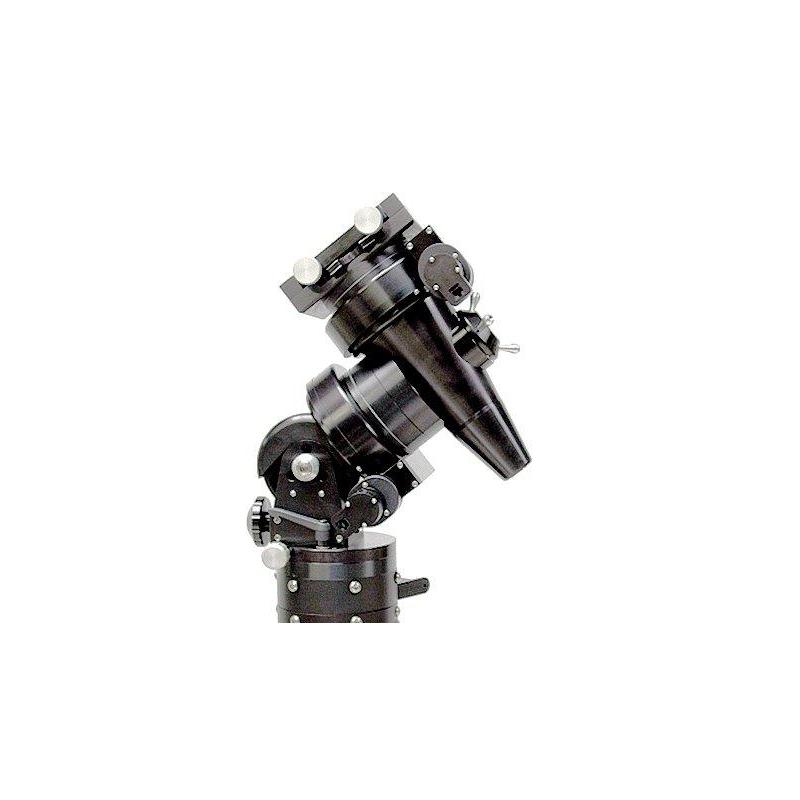

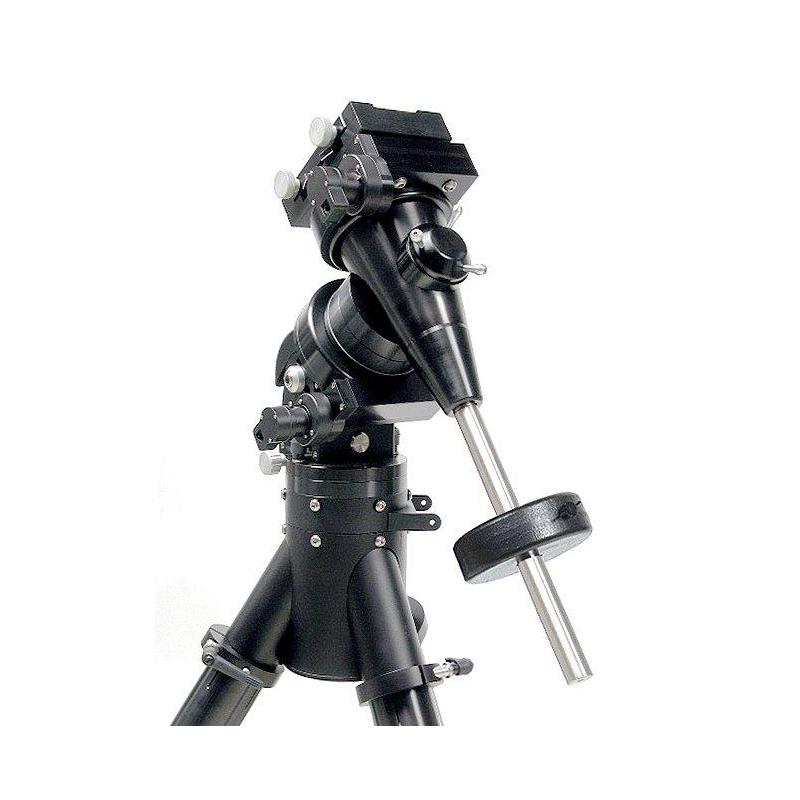

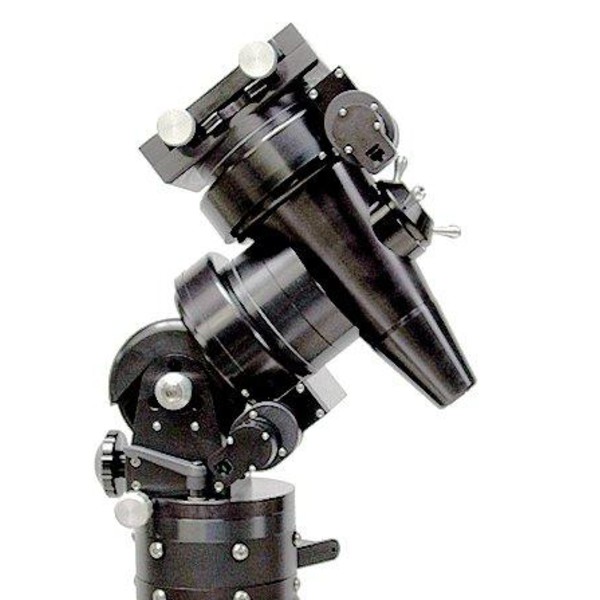

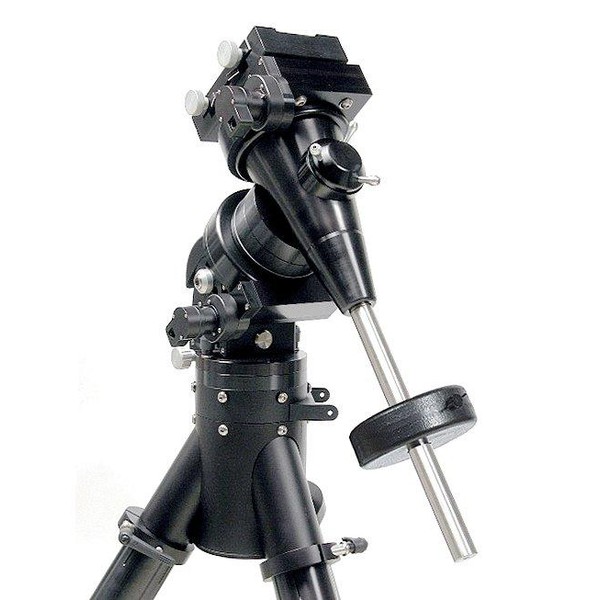

The HGM Titan is the biggest mount from Losmandy and is the best mount you can get, because of its reliability and superior mechanical advantages:
- All machined stainless steel and aluminum, black anodized.
- Shafts, 1.968" diameter stainless steel tubing, .250" wall thickness.
- Worm gears, 6.750" diameter, 270 tooth, 7075 aluminum - special coated.
- Worms, heat treated and ground stainless steel.
- Single piece worm housing construction, double ended, ball bearing supported with adjustable preload.
- 5.062" diameter needle thrust bearings, 3.500" diameter sealed ball bearings, 3.100" diameter sealed ball bearings for worm gear.
- Fully locking, unique tangent arm design altitude adjustment, 12-70 degrees, large knob for easy alignment.
- Variable slip clutch, 6.0" diameter both axes, one knob design.
- Full 360 degree rotation in both R.A. and DEC.
- Fully enclosed R.A. and DEC. worm and worm gear.
- Split dovetail saddle plate design, 1.00" X 6.00" X 8.00"
- Dovetail plate drops in and locks allowing for interchanging of any tube assembly - reduces the need for DEC. weights.
The mount accepts all Losmandy D-Series dovetail plates. Extra counterweights and a polarscope are available.

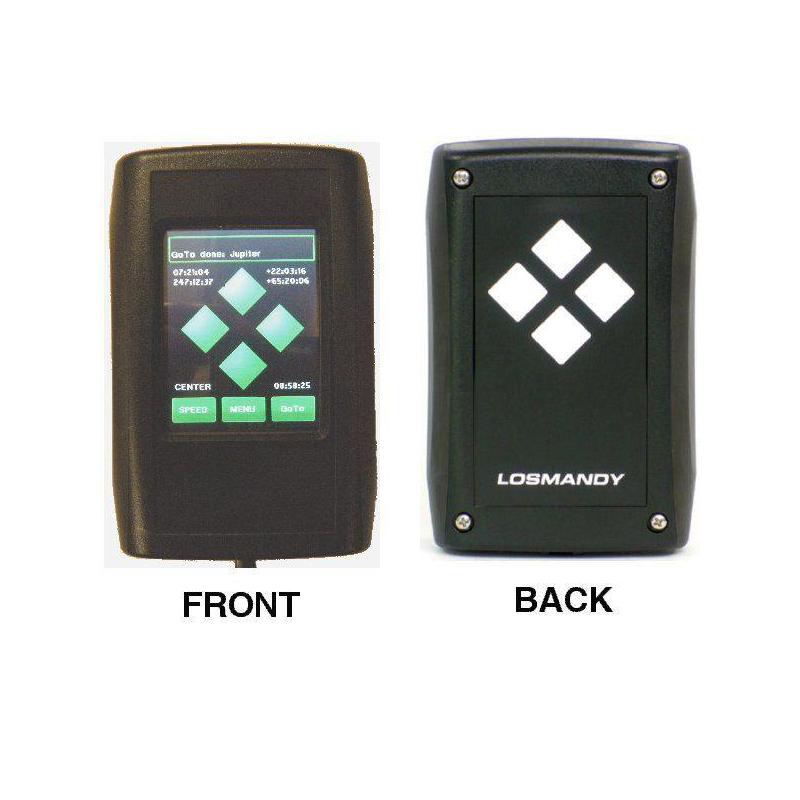

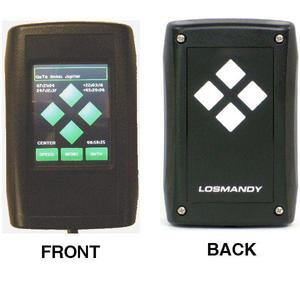

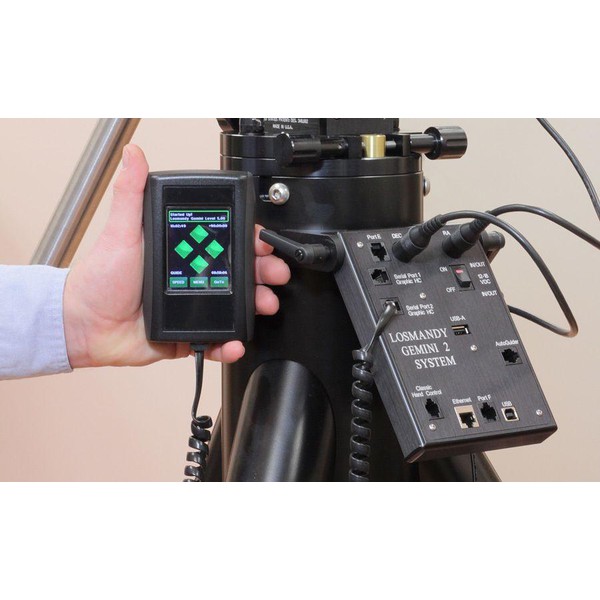

The mount is equipped with the GoTo system Gemini 2:
- Full Color Graphic Touch Screen clearly displays all functions, with auto color change from dawn to dusk
- Classic four-button pattern for guiding, centering, moving and slewing on both the touch screen and a tactile membrane on the rear
- Selectable GOTO, Slewing, Centering and Guiding Rate
- Stand-alone system. No PC required!
- Ethernet 10/100 with full IP function permits operation from anywhere using a browser, ASCOM, or APP over the web or serial port
- Non-Volatile Memory and Real-Time Clock, internal Battery keeps settings and preferences stored between uses, user define Park function
- English, French, Spanish & German displays
- Two USB ports; Virtual COM to PC, ASCOM or planetarium program
- Port F - multi-function serial; A/D I/O
- Auto switch tracking rates
- Search function
- Identify function
- Polar Align Assist, Polar Axis Correction
- User define limit stops
- Permanent Dec Backlash compensation
- Electronic Balance Graph
- Sidereal, King, Lunar, Solar, Terrestrial, Closed loop and Comet/user defined tracking rates
- Synchronize function
- Coordinate input
- Bookmark set for your favorite objects
