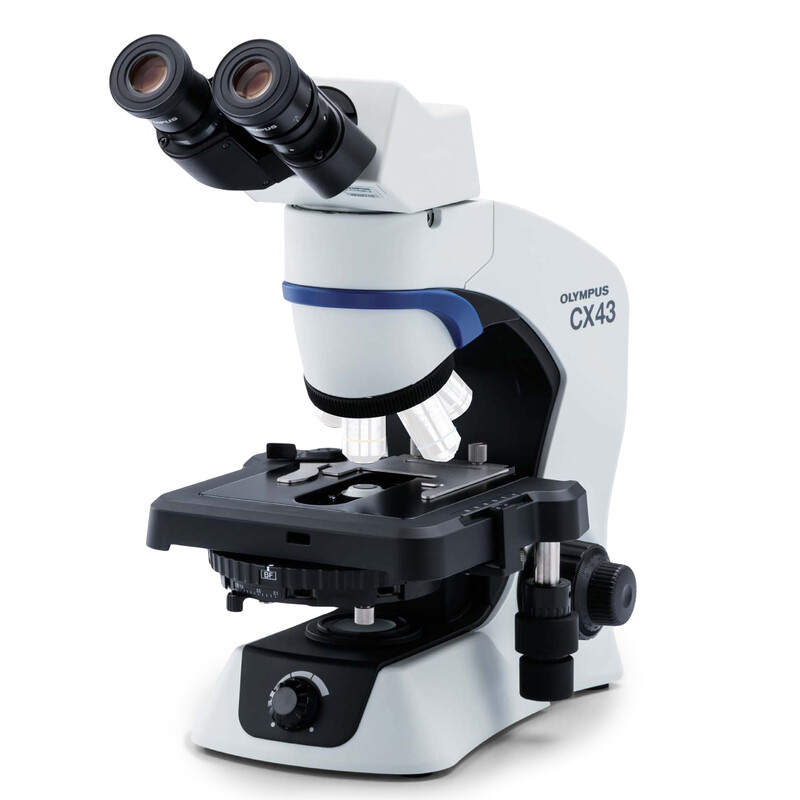

Olympus CX43 polarization (E07MIS0051)
Comfortable, High-Throughput Routine Microscopy
The CX43 microscope enable users to remain comfortable during long periods of routine microscopy observations. The microscope frame conforms to the user’s hands and the location of the control knobs maximize ergonomics to improve work efficiency. Users can quickly set a specimen with one hand, while adjusting the focus and operating the stage with the other hand with minimal movement. The microscope also features an optional camera port for digital imaging.
Upright microscope set for transmitted and reflected light observations with polarization
- integrated LED illumination
- low-positioned quintuple nosepiece
- mechanical stage (211 x 154 mm, travelling range 76 x 52 mm) with right handle, low drive control, stage lock pin and specimen holder for one slide
- Abbe condenser, NA 1.25
- 7 position turret: BF(4X - 100X), 2X, DF, Ph1, Ph2, Ph3, FL with shutter
- coaxial/fine focus, complete stroke 15 mm, fine stroke 300 µm/rotation, graduation 2.5 μm,
- binocular tube with two widefield eyepieces for FN20
- polariser and analyser are included
Included components:
- Binocular tube U-CBI30-2-2 (N1468300)
- Eyepiece: WHB10XH-2 (N1130000) (diopter compensation)
- Eyepiece: WHB10X-2 (N1129900)
- Polariser U-POT (037855)
- Adapter U-TAD (037861)
- Analyser U-ANT (037853)
- Polariser CX3-KPA (N5671900)
- Tripod CX43RF-1-2 (N5731700)
- Connecting cable UYCP (035425)
- Dust cover (038159)
Without objectives!!
Please choose your objectives from the accessories!
