Zoom-stereomikroskop NZ.1902-B-ESD, NexiusZoom, 6,7x till 45x, dubbelarm, utan belysning, ESD

NexiusZoom ESD series

Specifications

• Eyepieces: Pair WF 10x/22 mm eyepieces, both eyepieces with ± 5 diopter adjustments
• Head: Bino- or trinocular heads with 45° inclined tubes, interpupillary distance adjustable between 54 mm and 75 mm
• Objective: Zoom 1:6.7 objective with 0.67x to 4.5x magnifications, field of view from 33 mm to 4.9 mm, working distance 110 mm
• Auxiliary: 0.5x / 0.75x / 1.5x and 2.0x lenses available
• Stands: Ergonomically designed pillar or rack and pinion stand with LED illumination and 2 object clamps, ergonomically designed universal one arm or double arm stands without illumination, alloy metal cast, hardened off-white painted Focusing adjustment:Coarse adjustment
• Illumination: The 3 W transmitted and incident LEDs illuminators can be used simultaneously, both light intensities are adjusted separately

All optical parts are anti-fungus treated

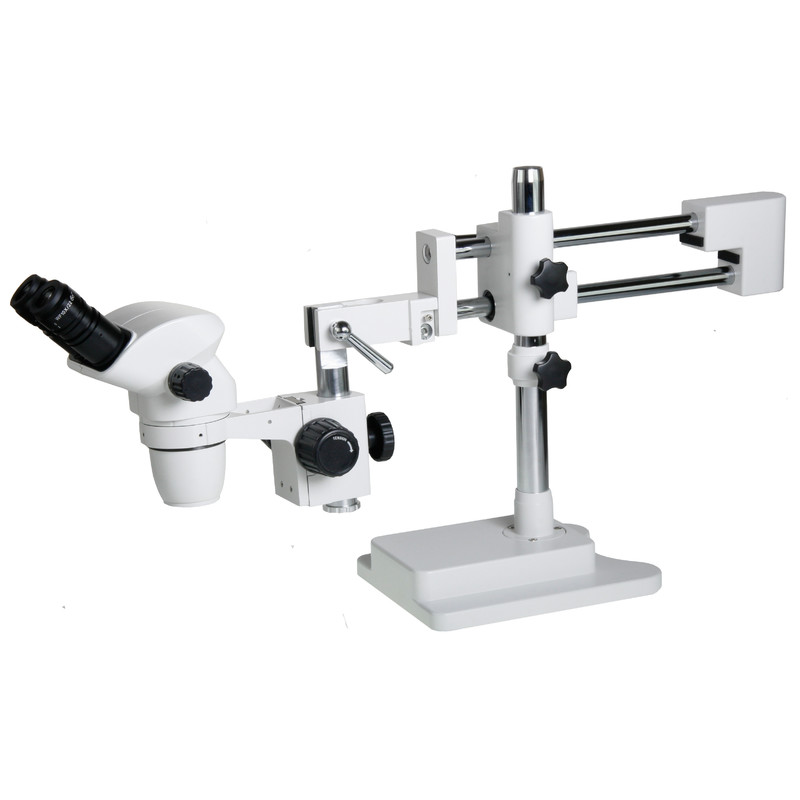

NZ.1902-B-ESD, NexiusZoom 6.7X to 45X microscope with double-arm boom stand, not including illumination, antistatic (ESD) version

NexiusZoom binocular zoom stereo microscope NZ.1902-B

NexiusZoom binocular Greenough zoom stereo microscope

Binocular stereo head with 0.67 x to 4,5 x stereo objective

WF10x/22 eyepieces in 45° inclined tubus with diopter adjustment

Total standard magnification from 6.67 to 45x

Field of view 33 to 4,9 mm

Working distance 110 mm

Metal universal double arm stand without illumination

Packed in styrofoam box
