Optical system Greenough
Inclination 45º inclined
Interpupillary distance 50-75mm
Diopter adjustment On both tubes, +/- 5 diopter
Eyepieces Widefield WF10X/20mm
Objectives system Zoom, ratio 6:1
Objectives 0.75X~4.5X
Working distance 110mm
Stand type 360º rotary base
Diaphragm Iris diaphragm, adjustable aperture Ø41mm - Ø2mm
Head holder For Ø76mm head
Focus mechanism Coarse focusing system with tension adjustment
Focusing stroke 125mm

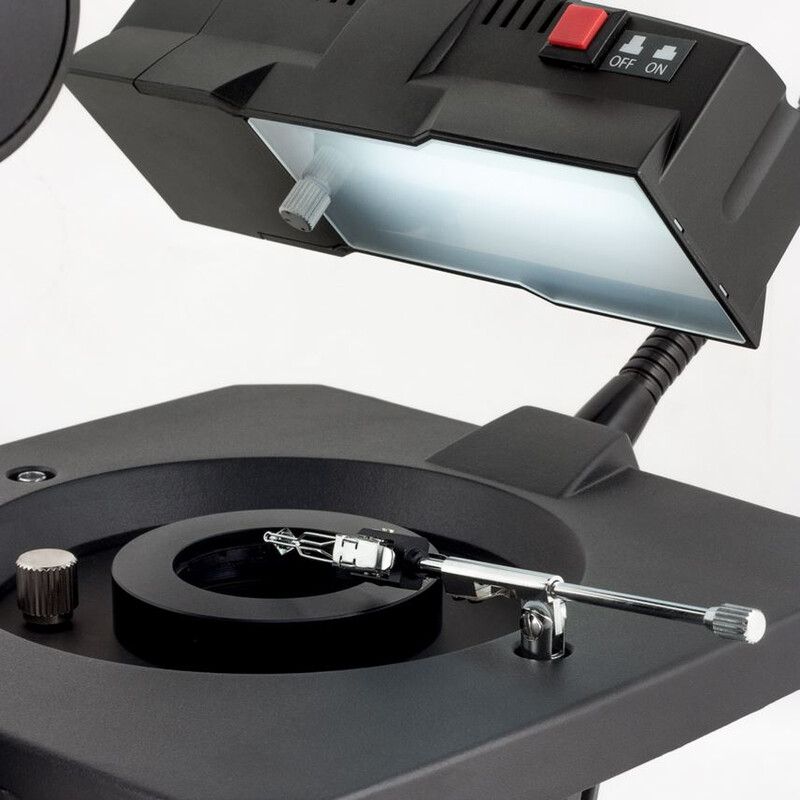

Incident illumination Fluorescent 7W with Gooseneck adjustable
Transmitted illumination Quartz Halogen 6V/30W with intensity control
Illumination features Darkfield illuminator
Transformer Internal
Power supply 100-240V (CE)
Accessories included
- dust cover
- stainless steel

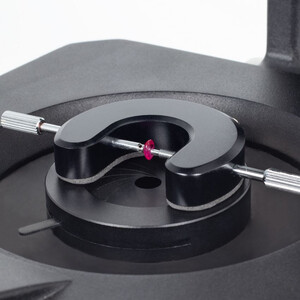

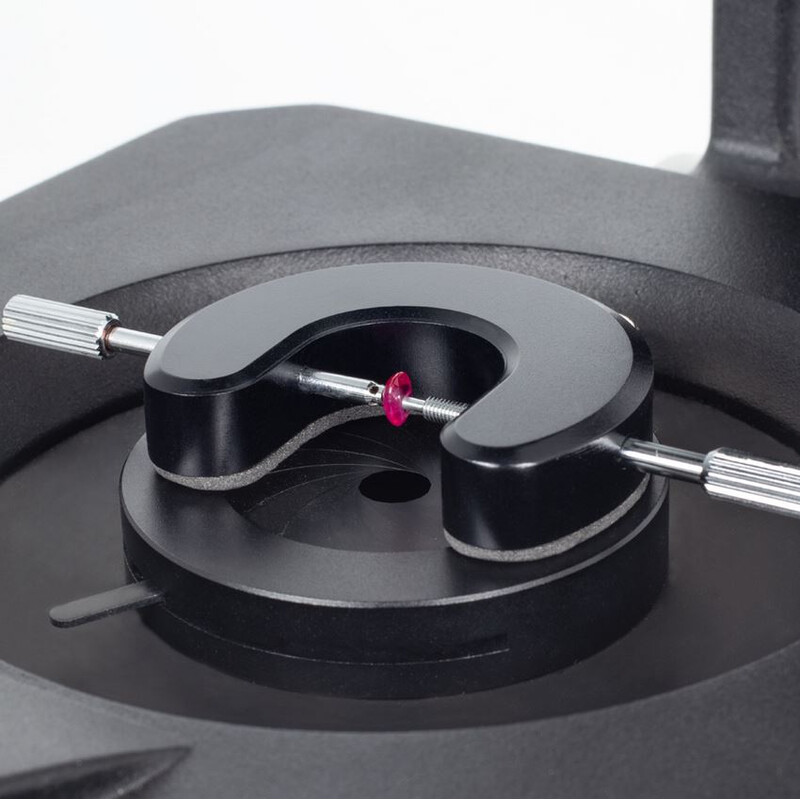

- wire stone holder
- aluminium carrying case
Dimensions LxWxH 391x236x500mm
Base 306x236mm

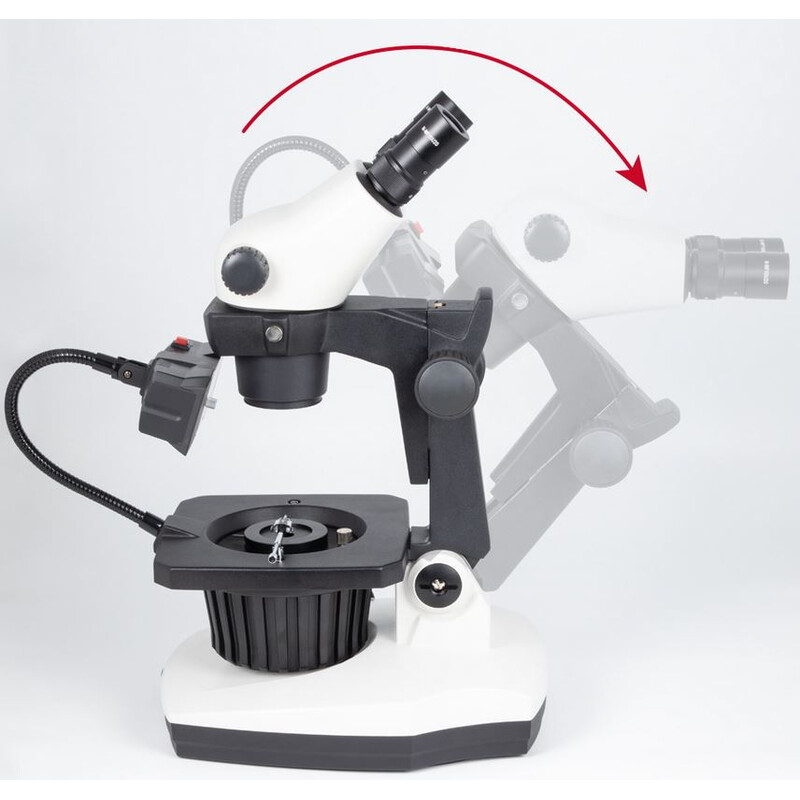

Column/Arm Height 268mm, 45º tilting arm
Net weight 8.2kg
