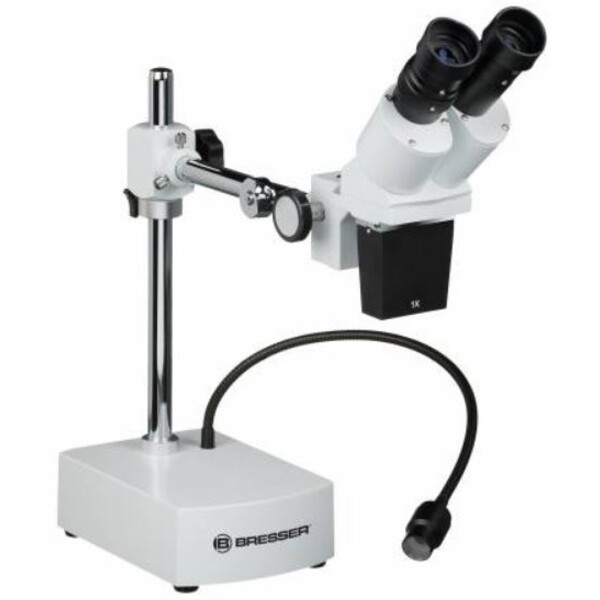

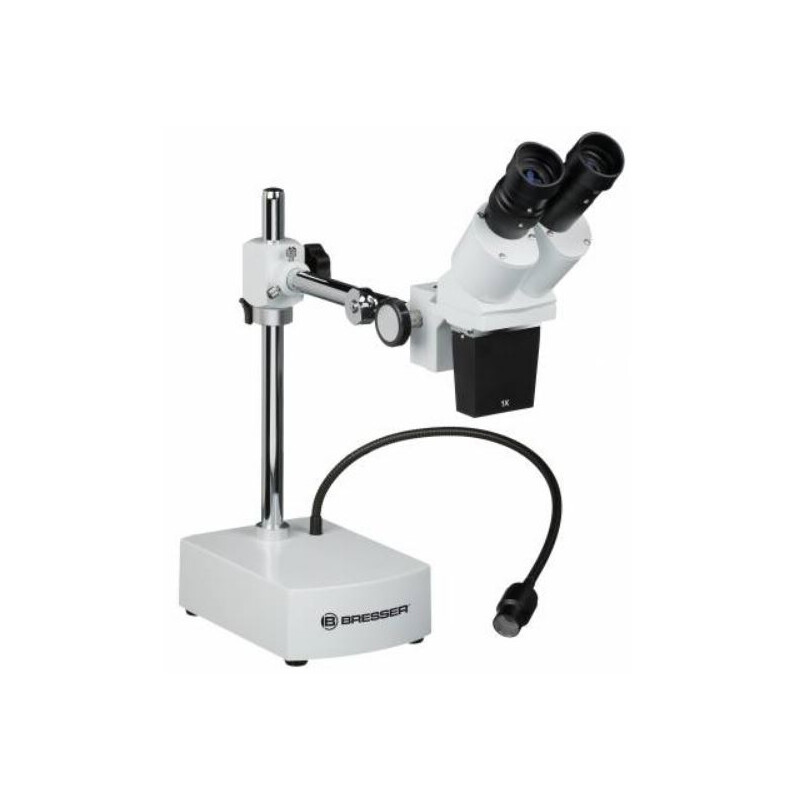

BRESSER Biorit ICD-CS 5x-20x Incident Light LED Microscope
Thanks to the large swivel range and the very high working distance of 230mm, the BRESSER Biorit ICD CS offers an excellent basis for a wide range of work, but also for quality control. It is used by many users, e.g. for soldering, especially SMD components. The swivel arm frees up the work surface under the microscope head so that larger components can also be handled. This model has two additional interchangeable 0.5x and 2.0x lenses, so that a wide magnification range with a large field of view can be achieved. With the 0.5x lens, a working distance of 250mm is achieved. With the 2.0x lens, the working distance is 80mm. The gooseneck LED illumination ensures optimal lighting of the object.
PROPERTIES
- Stereo microscope with large swivel range and long working distance
- Lighting: LED / mains operation
- Working distance for the 1.0x lens (approx.): 230mm / swivel arm: 210mm
- Object height: 70mm
SCOPE OF DELIVERY
- Stereo microscope
- Interchangeable lenses 0.5x / 1.0x / 2.0x
- Dust cover
- 1 pair of rubber eyecups
- Mains cable
