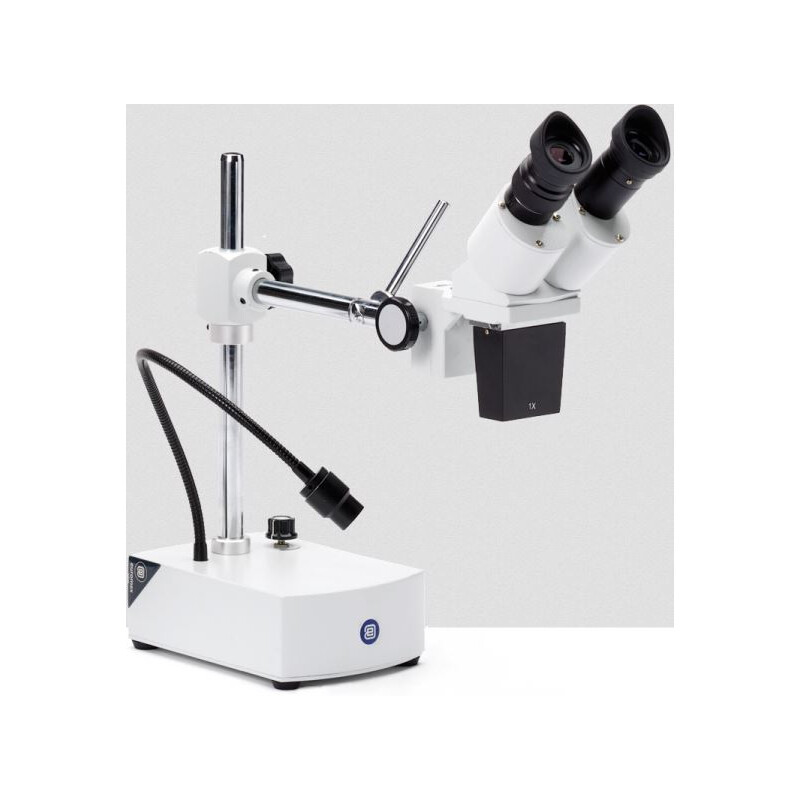

BE-50 series
HIGHLIGHTS
• Professional stereo microscopes for extra long working distance
• Interchangeable magnifications from 2.5x up to 40x
• Overhanging stand
• Large working area
• LED illumination
• 10 years warranty
TECHNICAL SPECIFICATIONS
EYEPIECE(S)
• Pair WF 10x/20 mm
HEAD
• Binocular 45° inclined tube
• Interpupillary distance adjustable between 55 and 75 mm
STAND
• Stable overhanging heavy base stand with pillar
FOKUSING
ADjuSTMENT
• Coarse adjustment with tension control
ILLUMINATION
• Incident 1 W LED illumination 44 cm on flexible arm
• Intensity is adjustable
OBjECTIVES
• Standard delivered with 0.5x fixed magnification objective, magnification 5x, field of view 40 mm. Working distance 250 mm
• Additional 1x fixed magnification objective available, magnification 10x, field of view 20 mm. Working distance 230 mm
• Additional 2x fixed magnification objective available, magnification 20x, field of view 10 mm. Working distance 119 mm
• Other magnifications available with optional eyepieces up to 40x.
• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
PACKAGING
• Supplied with power cord, dust cover, user manual
• All packed in a polystyrene box
Models
BE.1802 0.5x objective 250 mm
•
BE.1812 1.0x objective 230 mm
•
BE.1820 2.0x objective 119 mm
•
ACCESSORIES AND SPARE PARTS
BE.6005 Pair of HWF 5x/22 mm eyepieces
BE.6010 Pair of HWF 10x/20 mm eyepieces
BE.6015 Pair of HWF 15x/12 mm eyepieces
BE.6020 Pair HWF 20x/10 mm eyepieces
BE.6110 HWF 10x/20 mm eyepiece with micrometer
BE.6099 Pair of eyecups

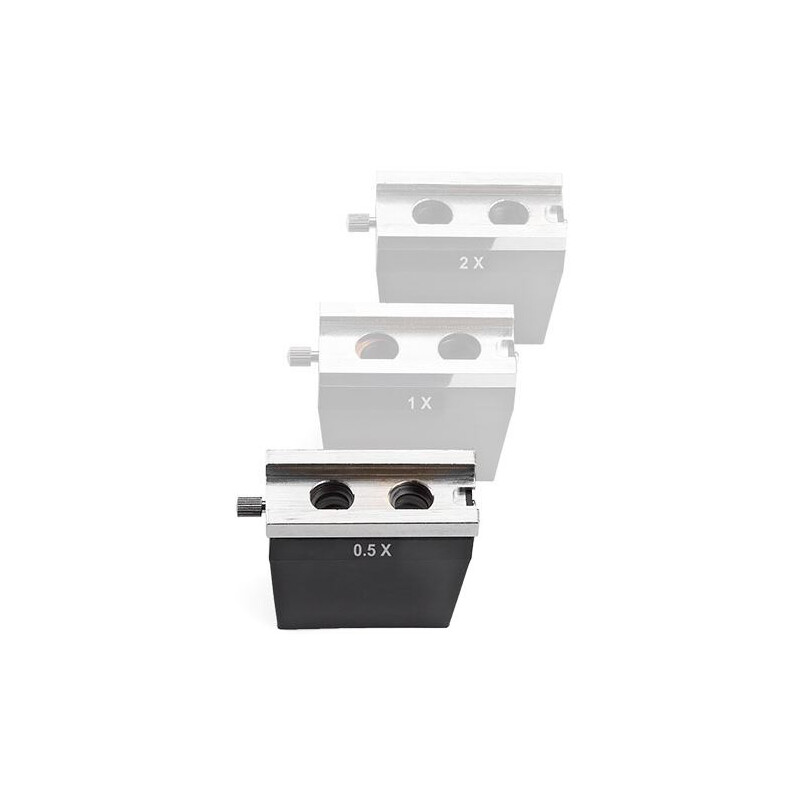

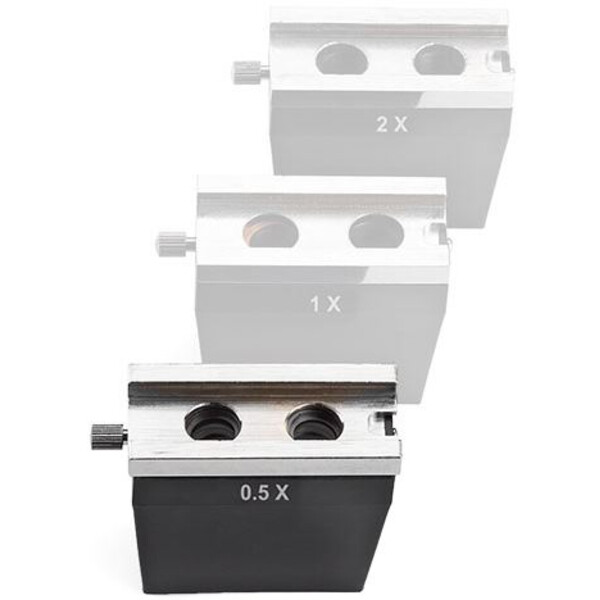

BE.7405 0.5x objective for BE-50 LED. Working distance 250 mm

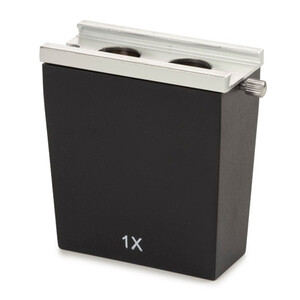

BE.7410 1.0x objective for BE-50 LED. Working distance 230 mm
BE.7420 2.0x objective for BE-50 LED. Working distance 119 mm
AE.1112 Micrometer slide, 50 mm/50 divisions
