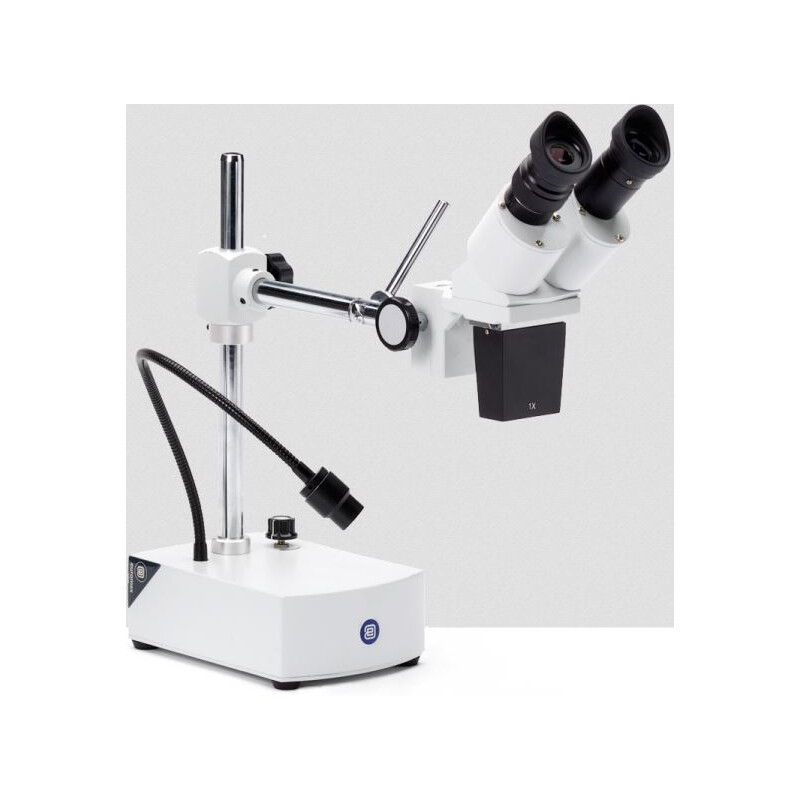

Stereomikroskop BE.1820, bino, 20x, LED, w.d. 119 mm

BE-50 series

HIGHLIGHTS

• Professional stereo microscopes for extra long working distance

• Interchangeable magnifications from 2.5x up to 40x

• Overhanging stand

• Large working area

• LED illumination

• 10 years warranty

TECHNICAL SPECIFICATIONS

EYEPIECE(S)

• Pair WF 10x/20 mm

HEAD

• Binocular 45° inclined tube

• Interpupillary distance adjustable between 55 and 75 mm

STAND

• Stable overhanging heavy base stand with pillar

FOKUSING

ADjuSTMENT

• Coarse adjustment with tension control

ILLUMINATION

• Incident 1 W LED illumination 44 cm on flexible arm

• Intensity is adjustable

OBjECTIVES

• Standard delivered with 0.5x fixed magnification objective, magnification 5x, field of view 40 mm. Working distance 250 mm

• Additional 1x fixed magnification objective available, magnification 10x, field of view 20 mm. Working distance 230 mm

• Additional 2x fixed magnification objective available, magnification 20x, field of view 10 mm. Working distance 119 mm

• Other magnifications available with optional eyepieces up to 40x.

• All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

PACKAGING

• Supplied with power cord, dust cover, user manual

• All packed in a polystyrene box

Models

BE.1802 0.5x objective 250 mm

•

BE.1812 1.0x objective 230 mm

•

BE.1820 2.0x objective 119 mm

•

ACCESSORIES AND SPARE PARTS

BE.6005 Pair of HWF 5x/22 mm eyepieces

BE.6010 Pair of HWF 10x/20 mm eyepieces

BE.6015 Pair of HWF 15x/12 mm eyepieces

BE.6020 Pair HWF 20x/10 mm eyepieces

BE.6110 HWF 10x/20 mm eyepiece with micrometer

BE.6099 Pair of eyecups

BE.7405 0.5x objective for BE-50 LED. Working distance 250 mm

BE.7410 1.0x objective for BE-50 LED. Working distance 230 mm

BE.7420 2.0x objective for BE-50 LED. Working distance 119 mm

AE.1112 Micrometer slide, 50 mm/50 divisions
