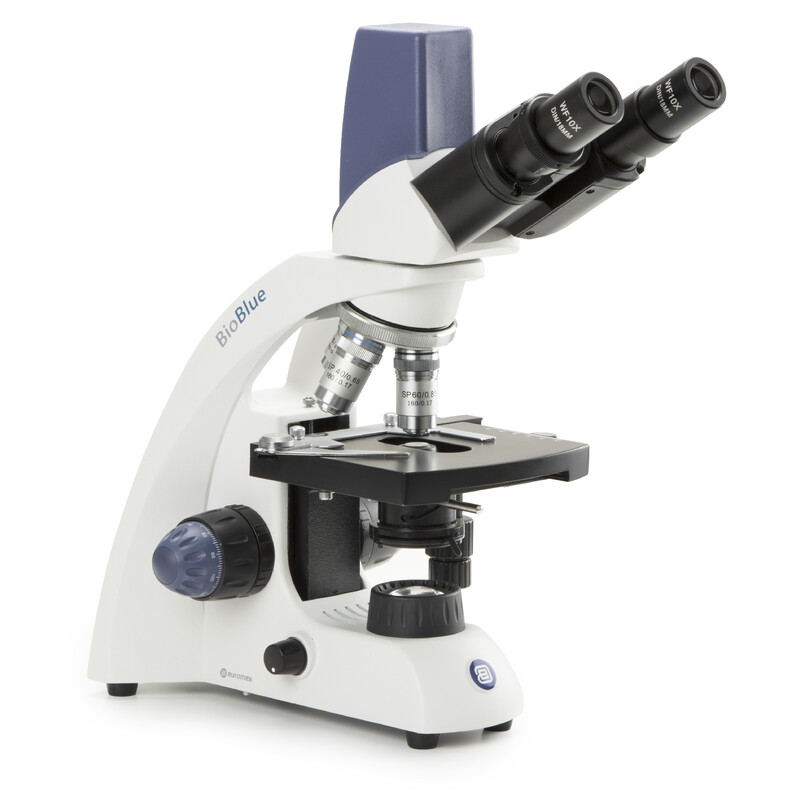

BioBlue digital models
The digital models within the BioBlue range have the same functions as the regular models without cameras. As these cameras have an integrated camera, they provide a compact solution for viewing microscope images. The supplied software enables the user to take photos or videos, send them to a computer monitor or projector, and take various measurements.
- Monocular (45° inclined lens tube) and binocular models (30° inclined lens tube)

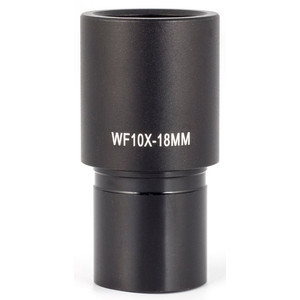

- WF 10x/18mm eyepieces (with pointer in monocular models)
- Inverse 4x lens revolver
- Achromatic semi-plan lenses: 4x 10x 20x S40x S60x and S100x oil (varies depending on model)
- Equipped with APL (Anti-bacterial Protection Layer)
- Stage (130x130mm) with integrated 70x28mm X-Y cross table (excluding BB.4205 model. This model has a simple 120x120mm table and is fitted with 2 non-removable object clamps)
- 1.25 N.A. height-adjustable Abbe condenser with iris diaphragm and filter holder
- 1W LED lighting (monocular), 1W NeoLED lighting (binocular and trinocular) with integrated 100-240V mains adaptor and 3 NiMH batteries.
- 5.0 MP CMOS USB-2 Camera
CAMERA
• 5.0MP CMOS
• Maximum resolution of 2560x1920, 24-bit colour depth, up to 30 frames per second
• Comes with ImageFocus Plus software, USB-2 cable and 1 mm/100 micrometer Slides
• The camera has a 2-year warranty
SOFTWARE
• Using the ImageFocus Plus software for image capture and analysis, images can be saved in JPG, TIF or BMP format and videos in AVI format.
• Images can be annotated with comments and measurements can be carried out on both live and saved images
• Compatible with Windows 7, 8, 10 and 11, 32- and 64-bit configurations
• A Mac OS light version is also available for image capture only
• Updates can be downloaded from the www.euromex.com website
