Monteringar och tillbehör > Monteringar > Parallaktisk med GoTo > 10 Micron > HPS > 10 Micron Montering GM 3000 HPS GoTo
Artikelnr: 43659

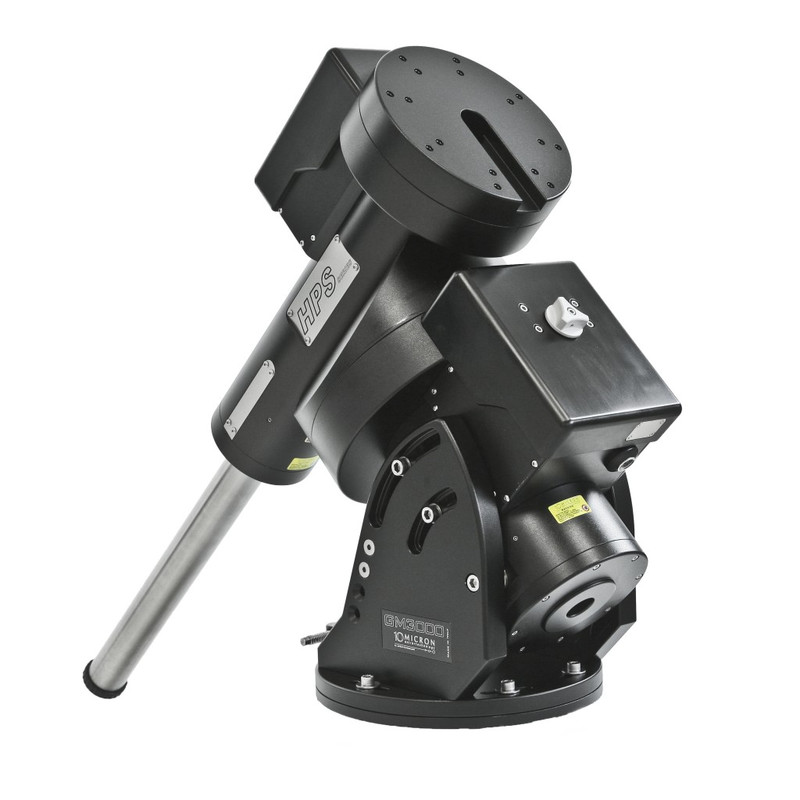

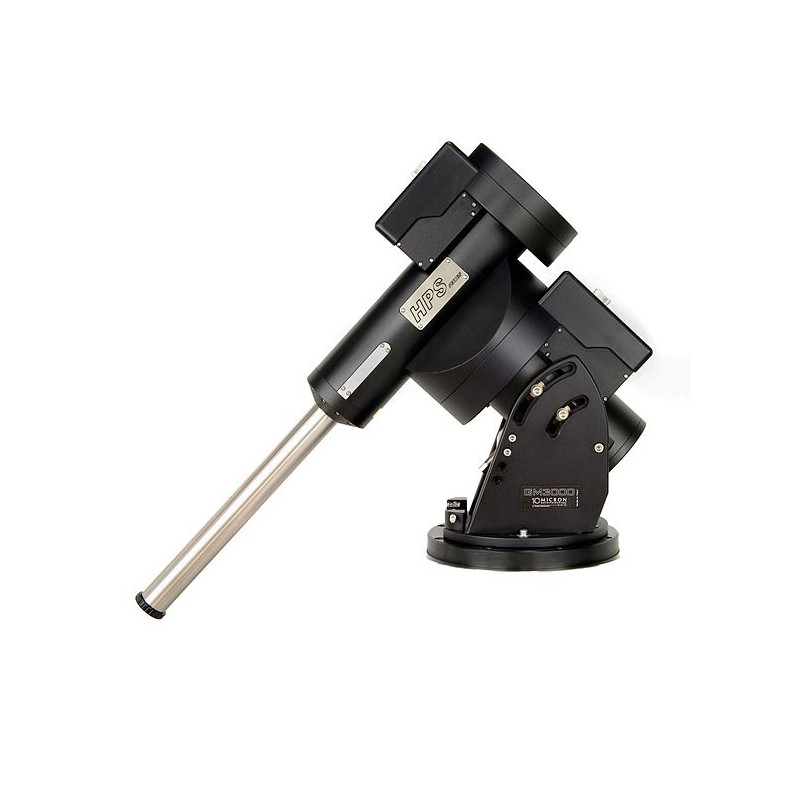

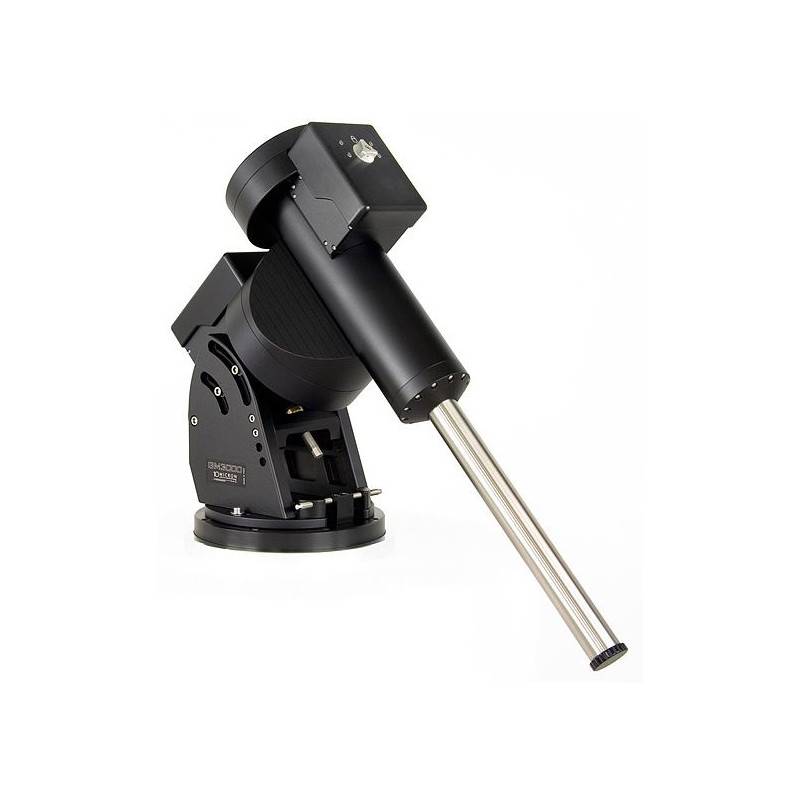

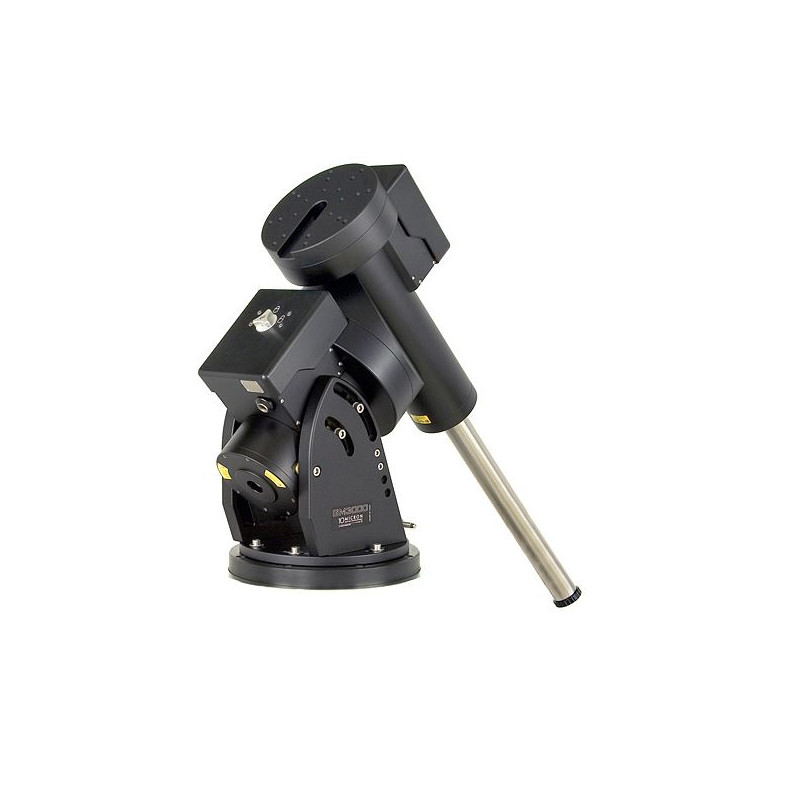

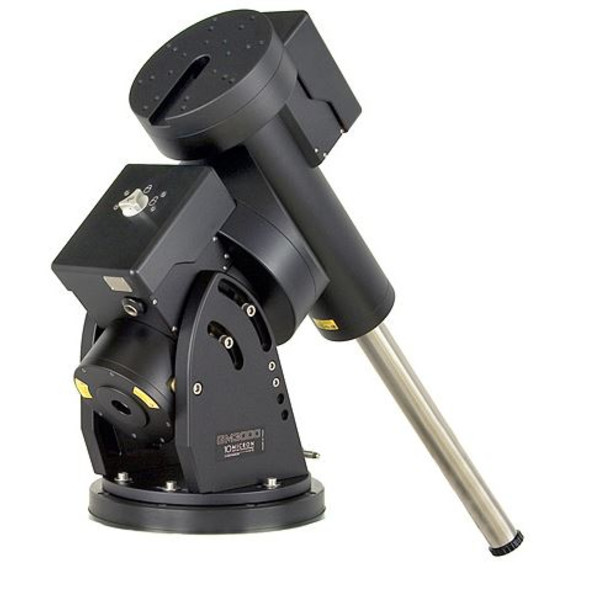

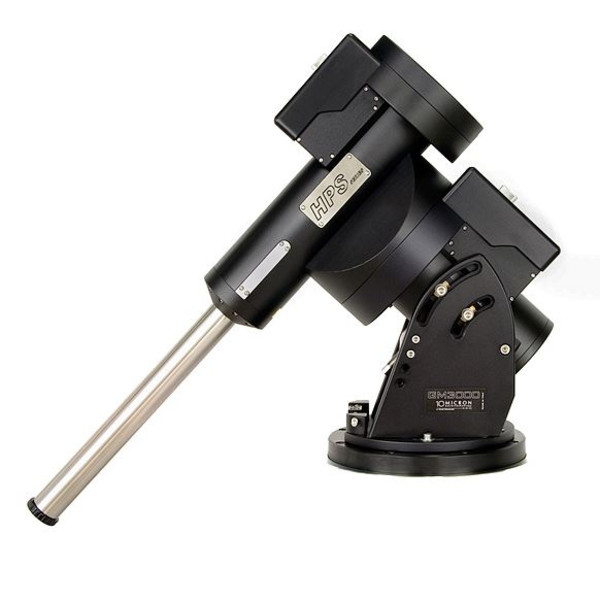

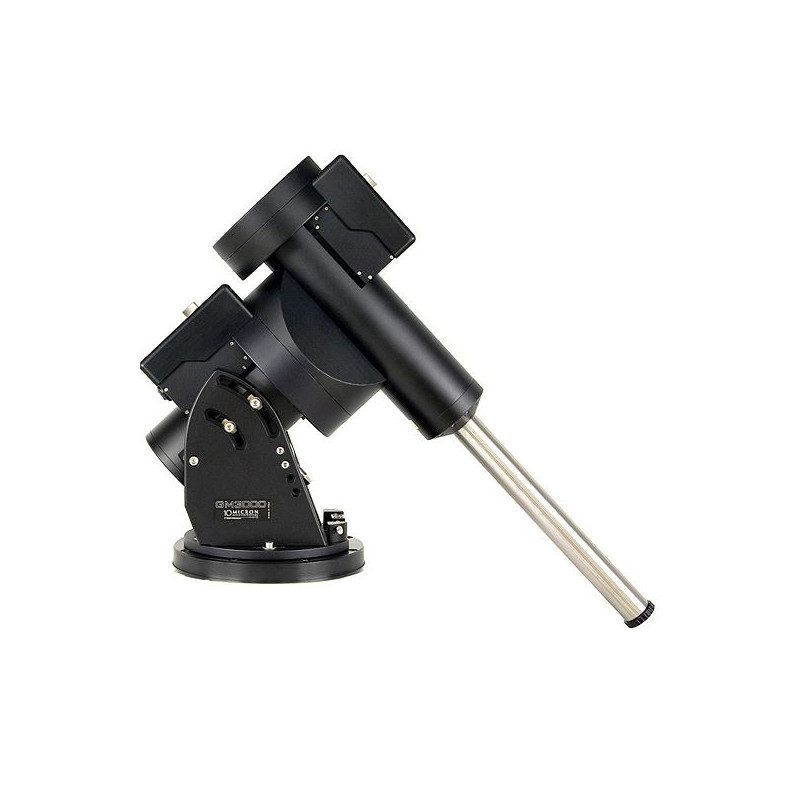

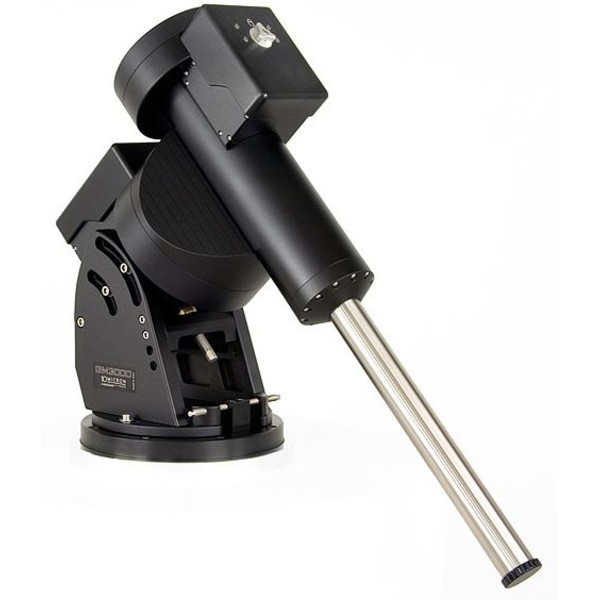

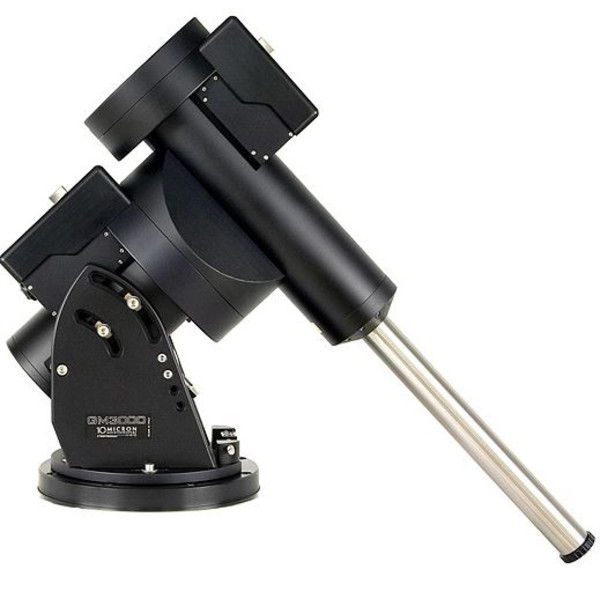

Montering GM 3000 HPS GoTo

på lång sikt
leveransklar om 3-6 månader + Frakttid

Ingen leverans möjlig före jul
Kolla alternativ på lager eller beställ en voucher!


Beskrivning av artikel

Please note: High-quality products of this size will be shipped in their own purpose-built wooden box with special clasps. This rather expensive packaging is necessary for secure transportation and must be added to the invoice amount.

Tyvärr har den här beskrivningen ännu inte översatts till svenska, så du hittar en engelsk artikelbeskrivning här.

HPS stands for High Precision and Speed - this mount can achieve a satellite tracking and positioning speed of 12 degrees/sec, with an average positioning accuracy of <20" and a tracking accuracy of approx 1"/15min (peak to peak).

The mount is also equipped with high-precision absolute encoders on both axes - this opens up entirely new possibilities. The mount will never lose its orientation, even if you manually move the telescope - no new alignment is necessary, even after a power failure. In portable operation, the mount is faster and easier to set up and north-align than any conventional equatorial mount.

Scope of delivery:

  • GM 3000 mount with high-precision absolute encoders

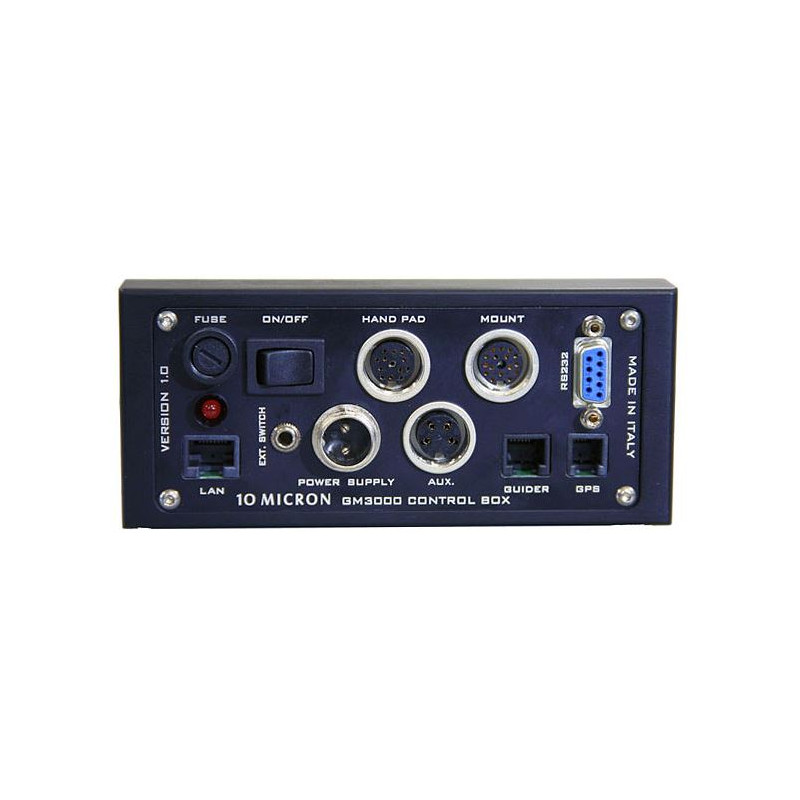

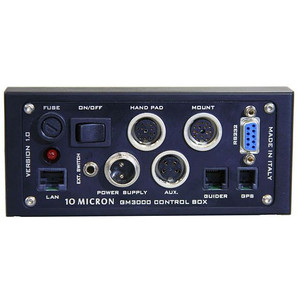

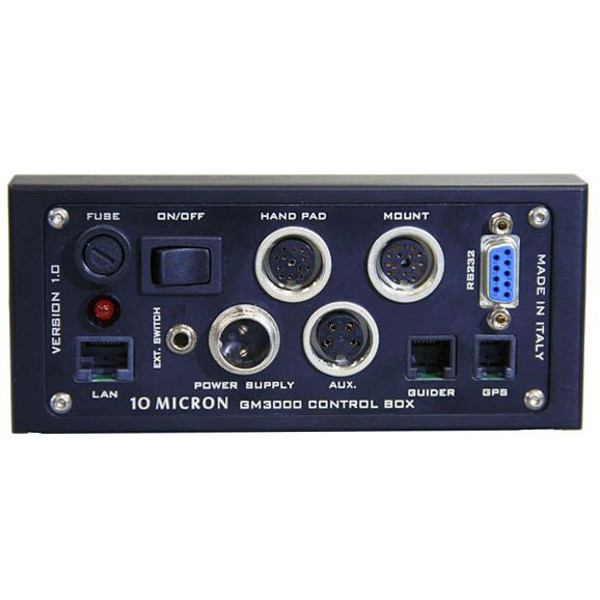

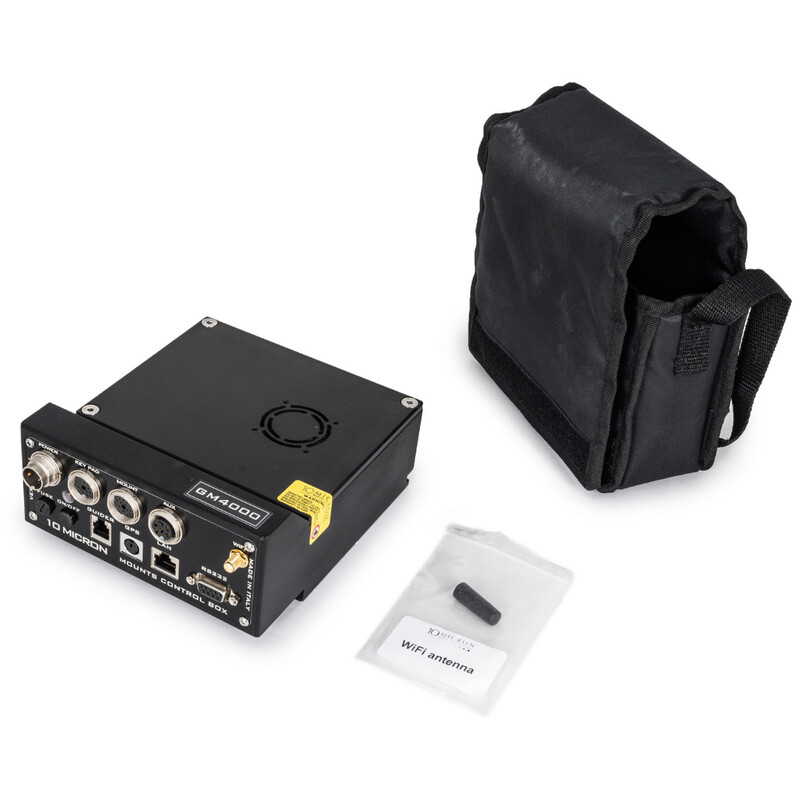

  • Motor control box with Linux processor
  • Latest QCI software (version 2.x)
  • Stand-alone hand-controller
  • Cable
  • Counterweight shaft

The HPS series: True precision for your astronomical future Take photographs without autoguiding, track satellites, find exoplanets using high-precision spectroscopy - and all with portable equipment!

GM 1000 HPS: - 25kg load capacity

GM 2000 HPS: - 50kg load capacity

GM 3000 HPS: - 100kg load capacity

GM 4000 HPS: - 150kg load capacity

MECHANICS

  • Self-locking, high-precision worm drive with classic sliding clutch
  • DC high-powered servo motor - no stalling due to imbalance
  • GM 1000 HPS with integrated high-precision encoders for portable stand-alone operation
  • Internal wiring - no external motor cables

ELECTRONICS

  • Absolute encoder installed in both RA and DEC axes with more than 10 million increments (interpolated), fully encapsulated and calibrated
  • RMS tracking precision up to 0.5“ - for long exposures without guiding!
  • Satellite tracking speed of up to 20 degrees per second!
  • Extremely low energy consumption, small electronics box (20x15x8cm)
  • The electronics (box and hand-held controls) can be simply removed after each use. This prevents damage due to premature ageing and moisture.

FIRMWARE

  • Fully automatic correction of atmospheric refraction - the only way to get perfect long exposures without guiding
  • Intuitive V 2 firmware and QSI controller, with Linux-based computer system incl. AMD microprocessor.
  • Precise GoTo - thanks to the Multistar alignment system and pointing models. Possibility to import satellite and comet orbits from web directories. Multiple individually programmable observation sessions
  • Very well documented firmware, German and English instructions
  • Autonomous operation without planetarium software, stand-alone operation using the hand-controller
  • Option to connect to all common planetarium software for remote operation (LAN, RS).
  • Electronic balancing - without opening the axes (pointing model is preserved)
  • Precise, fast and extremely accurate polar alignment thanks to the latest alignment software

INTERFACES

  • RS232, Ethernet, Wi-Fi
  • Connections for: GPS, autoguider, keypad, mount, AUX and remote switch

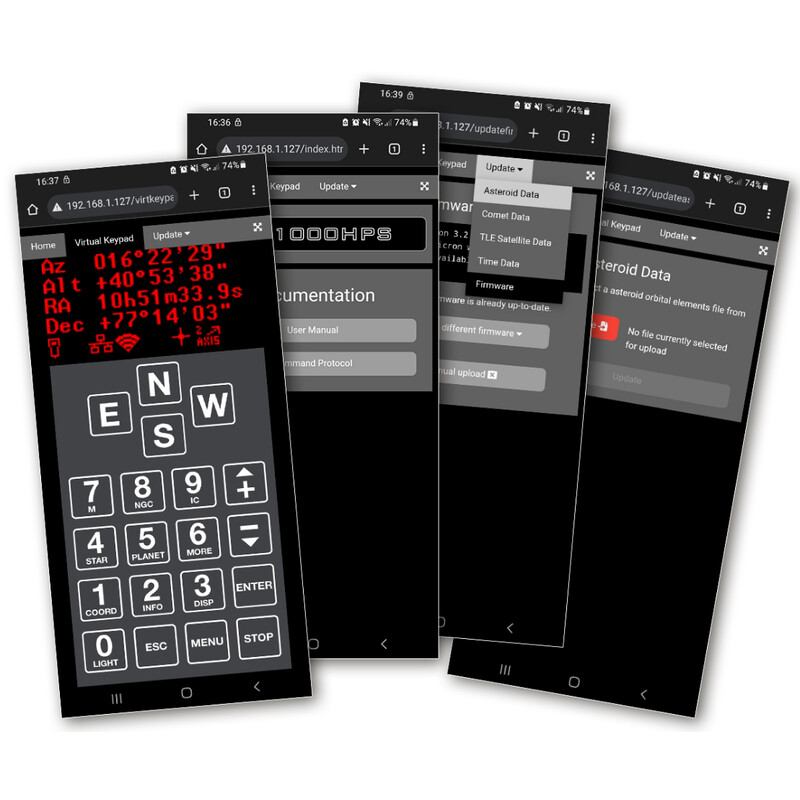

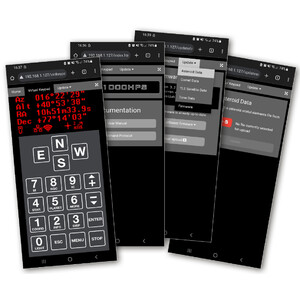

  • PC software: Virtual Keypad, Clock Sync Tool, Multi Mount, ASCOM drivers

Tekniska data

Prestanda


Max belastning (kg)
100
Beteckning
GM 3000 HPS GoTo
Polhöjdinställning (°)
20 - 70
Diameter motviktsstång (mm)
50
Programvara
QCI
Integrerad klocka
ja
Strömförsörjning
24
Strömförbrukning (mA)
1000
Snäckhjulskuggar (RA)
315
Material snäckaxel
Stål
Gränssnitt
RS–232 Port; GPS Port; ST-4 Standard Autoguiderport; Ethernet 10/100 Port
Typ av motor
Servomotor
Material snäckhjul
Brons
Diameter snäckhjul DEC (mm)
192
Diameter snäckhjul RA (mm)
244
Diameter snäckaxel DEC (mm)
24
Diameter snäckaxel RA (mm)
32
Snäckhjulskuggar (DEC)
250
Diameter rektascensionsaxel (mm)
80
Diameter deklinationsaxel (mm)
60
Typ av drivenhet
snigel-växellåda

Särskilda egenskaper


Spelutjämningsfunktion för DEC växel
ja
GoTo-system
ja
Kan styras via dator
ja
Med stöd för internetuppdatering
ja

Utrustning


Stativ
utan stativ

Allmänt


Totalvikt (kg)
60
Serie
HPS
Typ
Montering
Typ av byggnad
parallaktisk
